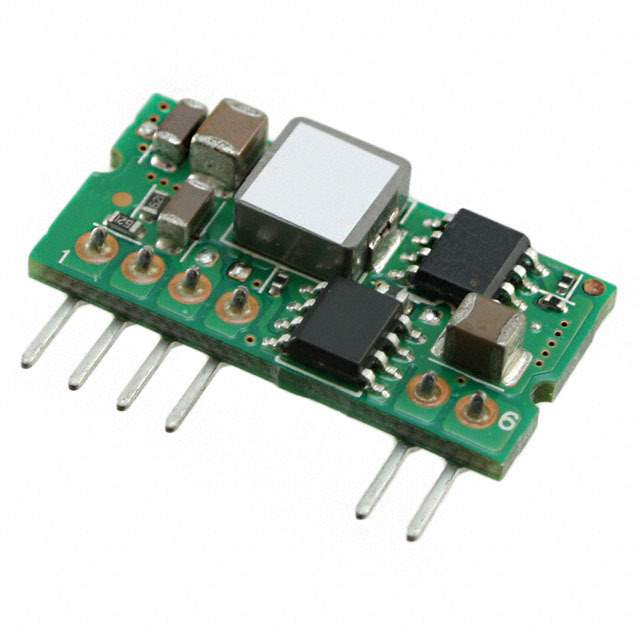

Same model may have multiple batches, images only for reference.

DNS10S0A0R06NFD

Name: DNS10S0A0R06NFD
Brand: Delta Electronics
SKU: 1335146
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DNS10S0A0R06NFD
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.75-5V 30W / Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5V 6A 8.3V - 14V Input
Datasheet	DNS10S0A0R06NFD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Delta Electronics
Packaging	Tray
Product Status	Last Time Buy
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	8.3V
Voltage - Input (Max)	14V
Voltage - Output 1	0.75 ~ 5V
Current - Output (Max)	6A
Power (Watts)	30 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 120°C
Efficiency	89.5%
Mounting	Through Hole
Case / Package	6-SIP Module
Size / Dimension	1.00" L x 0.26" W x 0.50" H (25.4mm x 6.7mm x 12.7mm)
Control Features	Enable, Active Low
Base Product Number	DNS10S0
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	941-1011
Standard Package	45
Win Source Part Number	1335146-DNS10S0A0R06NFD
Ultra Librarian 3D Model	Ultra Librarian DNS10S0A0R06NFD CAD Model

Alternative Products

Description

The DNS10S0A0R06NFD from Delta Electronics is a non-isolated PoL module that comes in a tray package.

Power: 30 W
Features: Remote On/Off, OCP, OTP, UVLO
Output Voltage: 0.75 ~ 5V
Output Current (Max): 6A
Input Voltage: 8.3V to 14V
Application: ITE (Commercial)
Temperature Range: -40°C to 120°C
Dimensions: 1.00" L x 0.26" W x 0.50" H (25.4mm x 6.7mm x 12.7mm)
Package: 6-SIP
Control Feature: Enable, Active Low
Mounting Type: Through Hole
