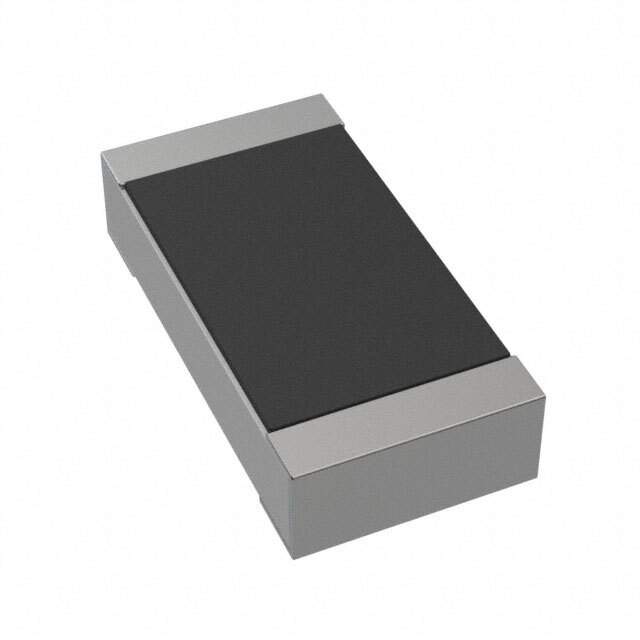

Same model may have multiple batches, images only for reference.

CML0510-4N7-BNH

Name: CML0510-4N7-BNH
Brand: Delta Electronics
SKU: 1125868
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CML0510-4N7-BNH
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 4.7NH 340MA 400MOHM SM / 4.7 nH Shielded Thin Film Inductor 340 mA 400mOhm Max 0402 (1005 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Delta Electronics/Cyntec
Series	CML0510
Package	Tape & Reel (TR)
Product Status	Obsolete
Type	Thin Film
Inductance	4.7 nH
Tolerance	±0.1nH
Current Rating (Amps)	340 mA
Shielding	Shielded
DC Resistance (DCR)	400mOhm Max
Q @ Freq	9 @ 100MHz
Frequency - Self Resonant	7GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting	SMD (SMT)
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.020" (0.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	10,000
Win Source Part Number	1125868-CML0510-4N7-BNH
Ultra Librarian 3D Model	Ultra Librarian CML0510-4N7-BNH CAD Model

Alternative Products

Description

The CML0510-4N7-BNH is a 4.7 nH thin film inductor that is shielded and has a tolerance of ±0.1nH manufactured by Delta Electronics/Cyntec.

Inductance: 4.7 nH
Tolerance: ±0.1nH
Package: 0402 (1005 metric)
Packaging: tape and reel
Series: CML0510
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mountable
Height: 0.020" (0.50mm)
Package Quantity: 10,000 pieces
MSL Level: 1 (unlimited)
Current Rating: 340 mA
DC Resistance: 400mOhm
Q @ Freq: 9 @ 100MHz
Frequency Self-Resonant: 7GHz
ECCN: EAR99
