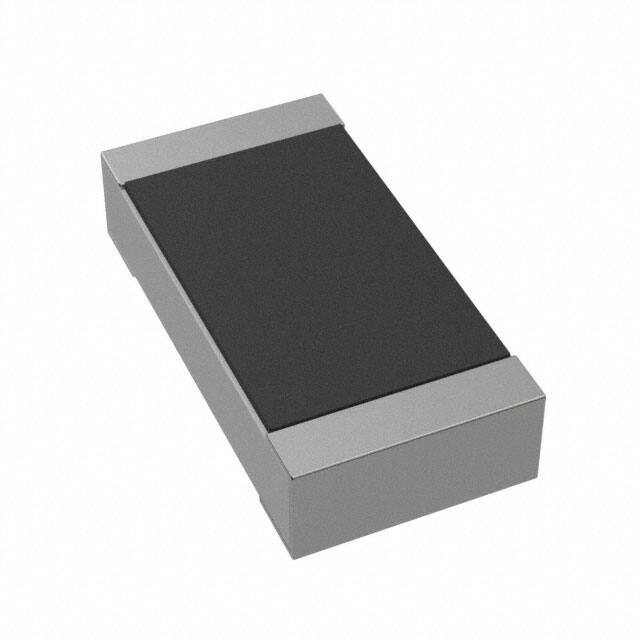

Same model may have multiple batches, images only for reference.

CML0510-3N9-CNH

Name: CML0510-3N9-CNH
Brand: Delta Electronics
SKU: 866925
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CML0510-3N9-CNH
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 3.9NH 500MA 200MOHM SM / 3.9 nH Shielded Thin Film Inductor 500 mA 200mOhm Max 0402 (1005 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Delta Electronics
Series	CML0510
Package	Tape & Reel
Product Status	Obsolete
Type	Thin Film
Inductance	3.9 nH
Tolerance	±0.2nH
Current Rating (Amps)	500 mA
Shielding	Shielded
DC Resistance (DCR)	200mOhm Max
Q @ Freq	9 @ 100MHz
Frequency - Self Resonant	7GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.020" (0.50mm)
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	866925-CML0510-3N9-CNH
Ultra Librarian 3D Model	Ultra Librarian CML0510-3N9-CNH CAD Model

Alternative Products

Description

The CML0510-3N9-CNH is a thin film fixed inductor from Delta Electronics.

Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Inductance: 3.9 nH
Height: 0.020" (0.50mm)
Design: Compact for space-constrained applications
Shielded: Yes
Package: Tape & reel
Tolerance: ±0.2nH
DC Resistance (DCR): 200mOhm
Current Rating: 500 mA
Operating Temperature Range: -40°C to 125°C
Q value: 9 @ 100MHz
Self-Resonant Frequency: 7GHz
Product Status: Obsolete
