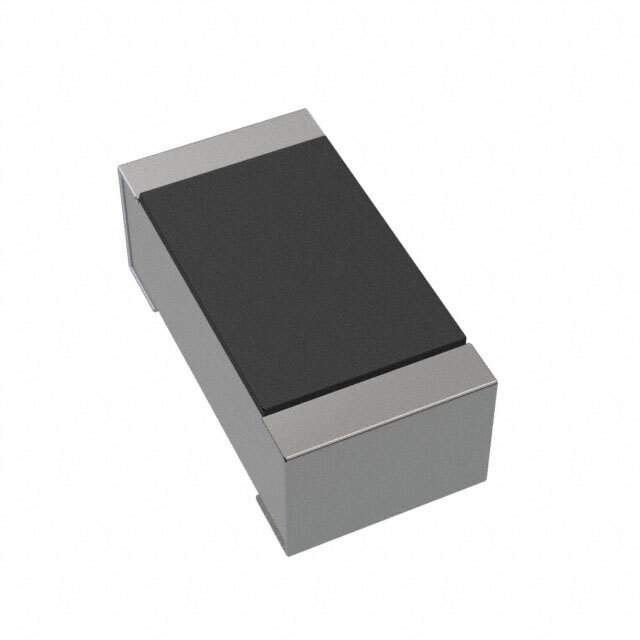

Same model may have multiple batches, images only for reference.

CML0306-5N6-JNH

Name: CML0306-5N6-JNH
Brand: Delta Electronics
SKU: 1119915
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CML0306-5N6-JNH
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 5.6NH 260MA 550MOHM SM / 5.6 nH Shielded Thin Film Inductor 260 mA 550mOhm Max 0201 (0603 Metric)
Datasheet	CML0306-5N6-JNH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Delta Electronics/Cyntec
Series	CML0306
Package	Tape & Reel
Product Status	Obsolete
Type	Thin Film
Inductance	5.6 nH
Tolerance	±5%
Current Rating (Amps)	260 mA
Shielding	Shielded
DC Resistance (DCR)	550mOhm Max
Q @ Freq	4 @ 100MHz
Frequency - Self Resonant	6GHz
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 MHz
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201
Dimension	0.024" L x 0.012" W (0.61mm x 0.31mm)
Height - Seated (Max)	0.013" (0.33mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	2037-CML0306-5N6-JNHTR,2037-CML0306-5N6-JNHDKR,2037-CML0306-5N6-JNHCT,CML0306-5N6-JNH-ND
Standard Package	10,000
Win Source Part Number	1119915-CML0306-5N6-JNH
Ultra Librarian 3D Model	Ultra Librarian CML0306-5N6-JNH CAD Model

Alternative Products

Description

The CML0306-5N6-JNH is a thin film fixed inductor manufactured by Delta Electronics/Cyntec.

Series: CML0306
Packaging: tape and reel
Features: compact size, high Q @ frequency
Frequency Self-Resonant: 6GHz
Inductance: 5.6nH
Current Rating: 260mA
