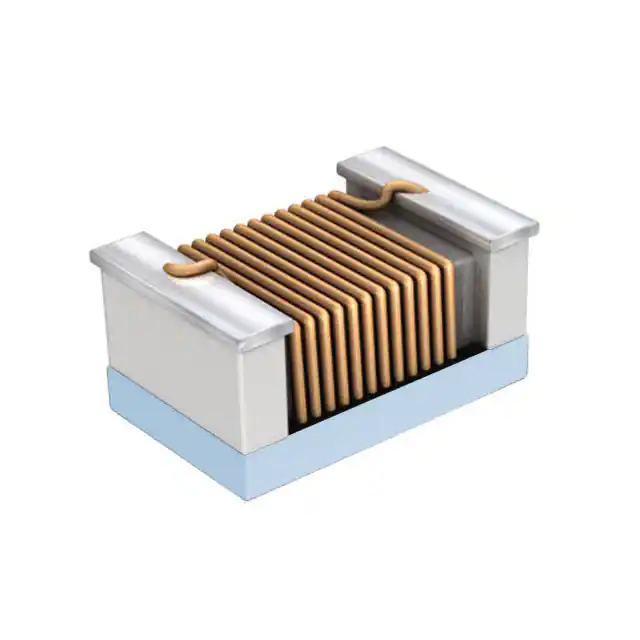

Same model may have multiple batches, images only for reference.

0402HS-270EJTS

Name: 0402HS-270EJTS
Brand: Delta Electronics
SKU: 1377286
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0402HS-270EJTS
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 27NH 400MA 300MOHM SMD
Datasheet	0402HS-270EJTS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Delta Electronics/Components
Series	0402HS
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	27 nH
Tolerance	±5%
Current Rating (Amps)	400 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	300mOhm
Q @ Freq	24 @ 250MHz
Frequency - Self Resonant	2.48GHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Size / Dimension	0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max)	0.024" (0.60mm)
Base Product Number	0402HS
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1377286-0402HS-270EJTS
Ultra Librarian 3D Model	Ultra Librarian 0402HS-270EJTS CAD Model

Alternative Products

Description

The 0402HS-270EJTS is a drum core, wirewound inductor from Delta Electronics/Components. It is a fixed inductor with an inductance value of 27nH and a current rating of 400mA.

Tolerance: ±5%
DC Resistance: 300mOhm
Size / Dimension: 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height: 0.024" (0.60mm)
Temperature Range: -40°C to 125°C
Mounting Type: Surface Mount
Shielding: Unshielded
Core Material: Ceramic
Self-Resonant Frequency: 2.48GHz
Q Value: 24 @ 250MHz
Packaging: Tape and Reel
Product Status: Active
