Same model may have multiple batches, images only for reference.

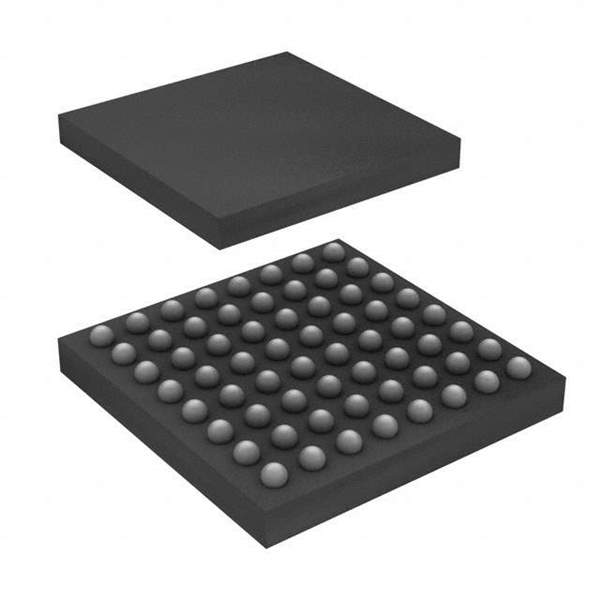

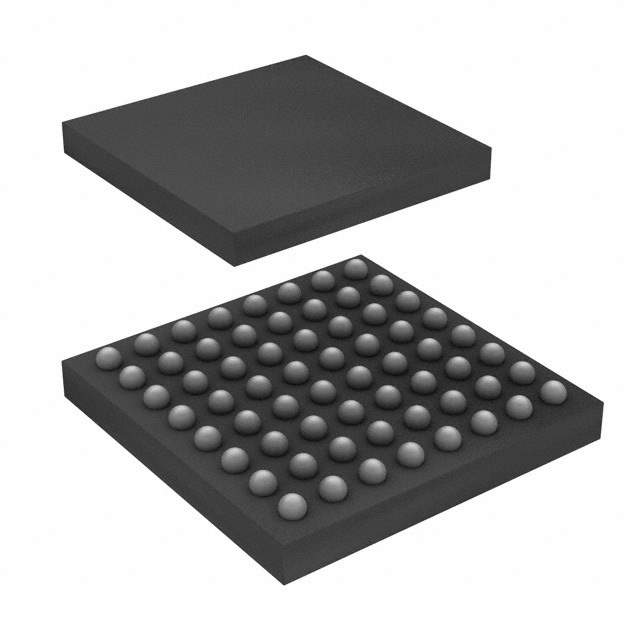

S29GL01GT11DHAV20 Real Image
Same model may have multiple batches, images only for reference.

S29GL01GT11DHAV20

Part No S29GL01GT11DHAV20
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 1GBIT PARALLEL 64FBGA  /  FLASH - NOR Memory IC 1Gb (128M x 8) Parallel 110 ns 64-FBGA (9x9)
Datasheet
S29GL01GT11DHAV20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series Automotive, AEC-Q100, GL-T
Package Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 1Gb (128M x 8)
Memory Interface Parallel
Write Cycle Time - Word, Page 60ns
Access Time 110 ns
Voltage - Supply 1.65V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 64-LBGA
Supplier Device Package 64-FBGA (9x9)
Base Product Number S29GL01
Standard Package 1,300
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1255524-S29GL01GT11DHAV20
Ultra Librarian 3D Model Ultra Librarian S29GL01GT11DHAV20 CAD Model

Description

The S29GL01GT11DHAV20 is a 1Gb (128M x 8) non-volatile FLASH - NOR memory integrated circuit from Cypress Semiconductor Corp.

  • Series: GL-T series that is designed for use in automotive applications and is AEC-Q100 qualified
  • Access Time: 110 ns
  • Voltage Supply: 1.65V to 3.6V
  • Package: 64-LBGA package
  • Mounting Technology: SMD (SMT) technology
  • Write Cycle Time: 60ns
  • Memory Interface: Parallel
  • REACH: REACH unaffected
  • HTSUS: 8542.32.0071
