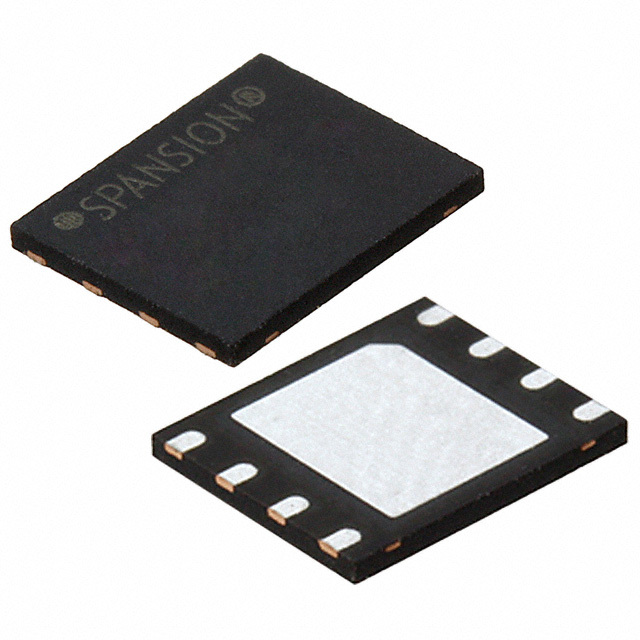

Same model may have multiple batches, images only for reference.
S25FL116K0XNFV010 Cypress Semiconductor Corp
Same model may have multiple batches, images only for reference.

S25FL116K0XNFV010

Part No S25FL116K0XNFV010
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 16MBIT SPI/QUAD 8WSON  /  FLASH - NOR Memory IC 16Mb (2M x 8) SPI - Quad I/O 108 MHz 8-WSON (5x6)
Datasheet
S25FL116K0XNFV010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series FL1-K
Package Tray
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Memory Interface SPI - Quad I/O
Clock Frequency 108 MHz
Write Cycle Time - Word, Page 3ms
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-WSON (5x6)
Base Product Number S25FL116
Other Names -S25FL116K0XNFV010
Standard Package 490
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 1255409-S25FL116K0XNFV010
Ultra Librarian 3D Model Ultra Librarian S25FL116K0XNFV010 CAD Model

Description

The S25FL116K0XNFV010 is a non-volatile memory type IC from Cypress Semiconductor Corp.

  • Memory Size: 16Mb (2M x 8)
  • Voltage Supply: 2.7V to 3.6V
  • Memory Interface: SPI - Quad I/O
  • Clock Frequency: 108 MHz
  • Package: 8-WDFN Exposed Pad
  • Operating Temperature Range: -40°C to 105°C (TA)
  • Memory Format: FLASH
  • Memory Type: FLASH - NOR
  • Application: Integrated Circuits (ICs) and Memory
