Same model may have multiple batches, images only for reference.

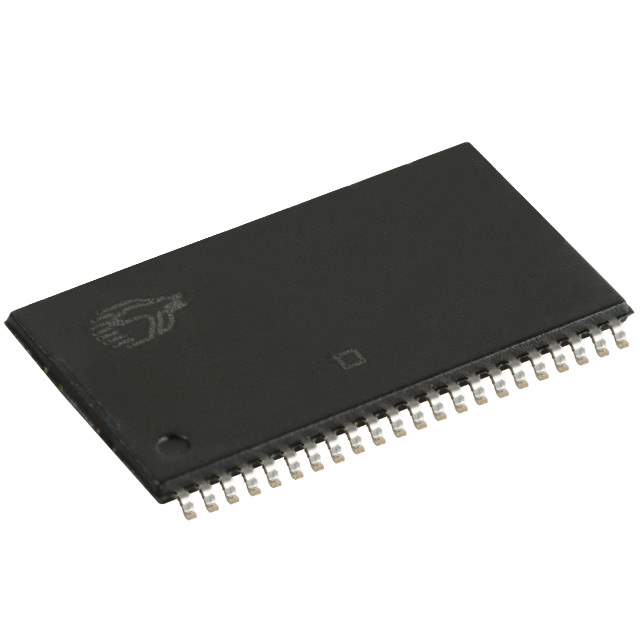

CY62157ELL-55ZSXE Real Image
Same model may have multiple batches, images only for reference.

CY62157ELL-55ZSXE

Part No CY62157ELL-55ZSXE
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description 8-Mbit (512K x 16) Static RAM
Datasheet
CY62157ELL-55ZSXE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Series MoBL
Packaging Tray
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 8Mb (512K x 16)
Write Cycle Time - Word, Page 55ns
Access Time 55ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting SMD
Package 44-TSOP (0.400", 10.16mm Width)
Manufacturer Package 44-TSOP II
Win Source Part Number 1164352-CY62157ELL-55ZSXE
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY62157ELL
Introduction Date October 10, 2001
ECCN 3A991.b.2.a
Country of Origin China, Taiwan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CY62157ELL-55ZSXE CAD Model

Description

The CY62157ELL-55ZSXE is an electronic component manufactured by Cypress Semiconductor Corp.

  • Product Name: CY62157ELL-55ZSXE
  • Memory Type: SRAM - Asynchronous
  • Memory Size: 8Mb (512K x 16)
  • Access Time: 55ns
  • Operating Supply Voltage: 4.5 V ~ 5.5 V
  • Operating Temperature Range: -40°C ~ 125°C (TA)
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Homepage: www.cypress.com
