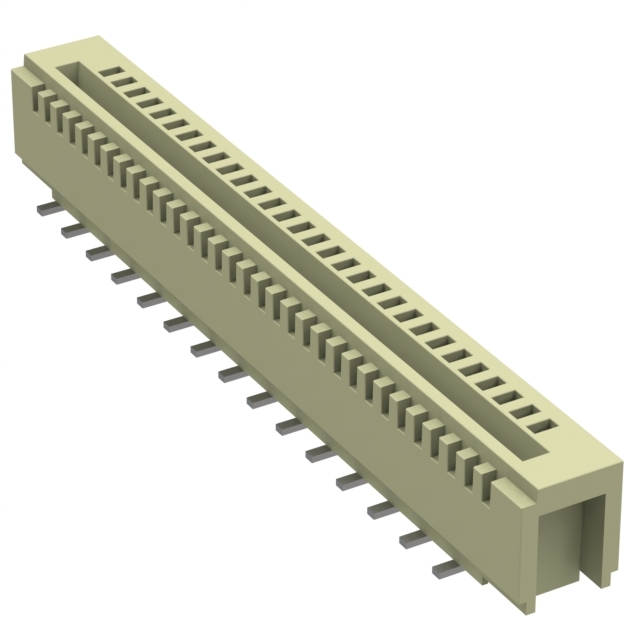

CF16301M0R0-NH Cvilux USA – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CF16301M0R0-NH

Part No CF16301M0R0-NH
Manufacturer Cvilux USA
Catalog FFC, FPC (FlatFlexible) Connectors
Description 30 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cvilux USA
Series CF16
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 30
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.29mm ~ 0.34mm
Height Above Board 0.205" (5.20mm)
Cable End Type Straight, Tapered
Contact Finish Tin
Housing Material Thermoplastic, Halogen Free
Features Low Insertion Force (LIF), Pick and Place Cap
Voltage Rating 100V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Natural
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1479740-CF16301M0R0-NH
Ultra Librarian 3D Model Ultra Librarian CF16301M0R0-NH CAD Model
