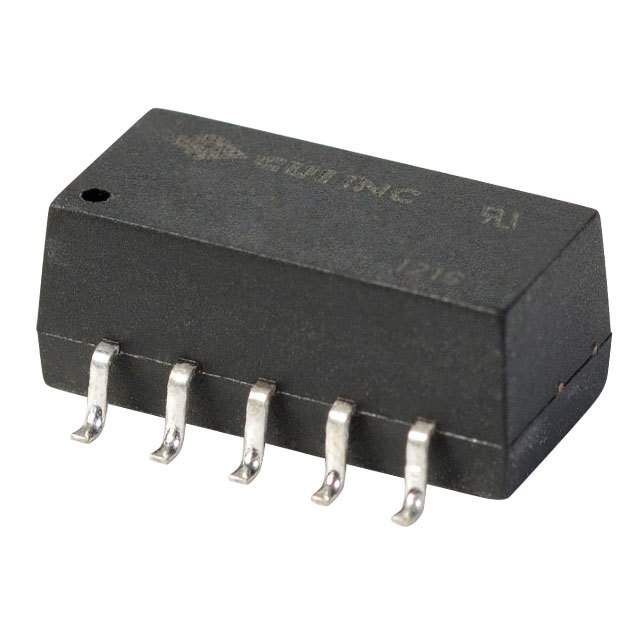

Same model may have multiple batches, images only for reference.

VAT1-S5-D5-SMT-TR

Name: VAT1-S5-D5-SMT-TR
Brand: CUI Inc.
SKU: 799006
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VAT1-S5-D5-SMT-TR
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERTER DC/DC +/-5V OUT 1W
Datasheet	VAT1-S5-D5-SMT-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	CUI Inc.
Series	VAT1-SMT
Packaging	Reel package
Part Status	Obsolete(EOL)
Type	Isolated Module
Number of Outputs	2
Input Voltage MIN	4.5V
Voltage Input MAX	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Maximum)	100mA, 100mA
Power (Watts)	1W
Voltage - Isolation	1kV (1000V)
Applications	ITE (Commercial)
Features	SCP
Operating Temperature Range	-40°C ~ 85°C
Efficiency	72%
Mounting	SMD
Package	10-SMD Module
Dimension	0.60" L x 0.30" W x 0.25" H (15.2mm x 7.6mm x 6.4mm)
Win Source Part Number	799006-VAT1-S5-D5-SMT-TR
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian VAT1-S5-D5-SMT-TR CAD Model

Alternative Products

Description

The VAT1-SMT is an isolated module type DC-DC converter with a maximum power of 1W and features like SCP.

Size / Dimension: 0.60" L x 0.30" W x 0.25" H (15.2mm x 7.6mm x 6.4mm)
Application: ITE (Commercial)
Voltage Isolation: 1kV (1000V)
Package: 10-SMD module
Operating Temperature: -40°C ~ 85°C
Part Status: Discontinued (EOL)
Manufacturer: CUI Inc.
