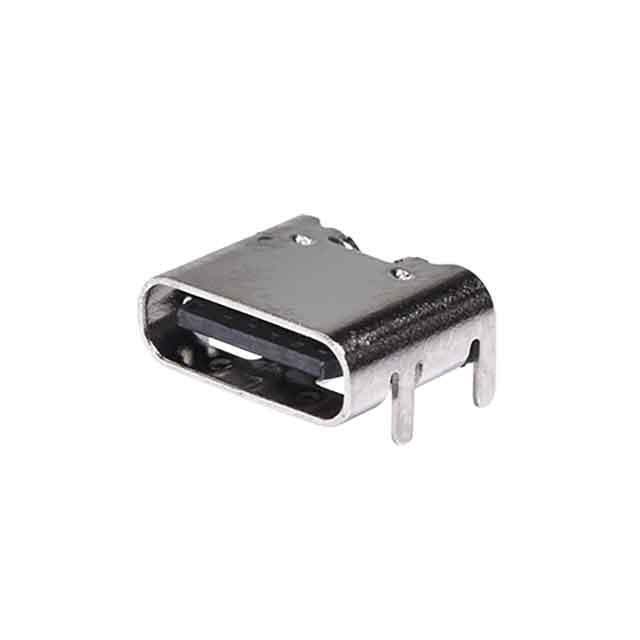

UJC-HP-3-SMT-TR CUI Devices
Same model may have multiple batches, images only for reference.

UJC-HP-3-SMT-TR

Part No UJC-HP-3-SMT-TR
Manufacturer CUI Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT TYPE C 24POS SMD RA
Datasheet
UJC-HP-3-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202666-UJC-HP-3-SMT-TR
Manufacturer CUI Devices
Category Connectors, Interconnects- USB, DVI, HDMI Connectors -USB, DVI, HDMI Connector Assemblies
Series UJC
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24 (6+18 Dummy)
Gender Receptacle
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Ultra Librarian 3D Model Ultra Librarian UJC-HP-3-SMT-TR CAD Model

Description

The USB-C (USB TYPE-C) Connector Assembly from CUI Devices is a versatile and reliable solution for your connectivity needs.

  • Number of Contacts: 24 (6+18 Dummy)
  • Mounting Type: Surface Mount, Through Hole
  • Series: UJC
  • Mounting Feature: Horizontal
