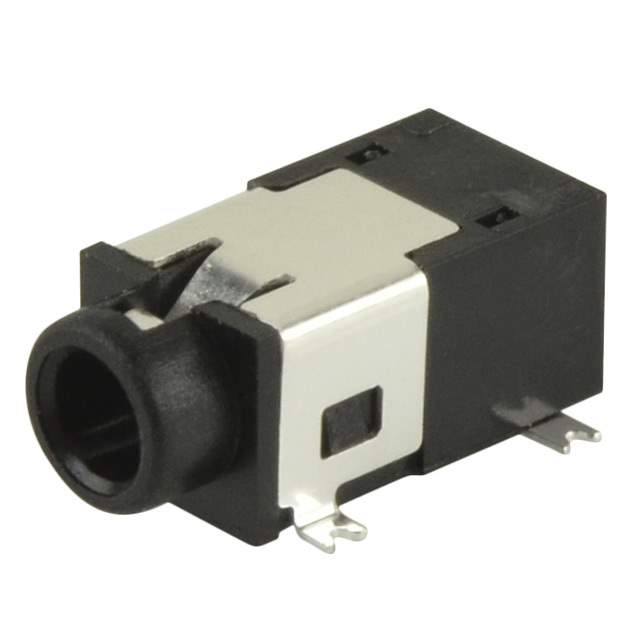

SJ2-2503A-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

SJ2-2503A-SMT-TR

Part No SJ2-2503A-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description AUDIO JACK, 2.5 MM, RT, 4 CONDUC / 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Datasheet
SJ2-2503A-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Audio Connectors
Mfr CUI Devices
Series SJ2
Package Tape & Reel
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter 0.102" (2.60mm)
Number of Positions/Contacts 4 Conductors, 4 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.433" (11.00mm)
Contact Material - Plating Silver
Body Color Black
Housing Material Polyamide (PA10T), Nylon 10T
Contact Material Copper Alloy
Base Product Number SJ2-25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Names CP-SJ2-2503A-SMT-CT,CP-SJ2-2503A-SMT-TR,CP-SJ2-2503A-SMT-DKR,2266-SJ2-2503A-SMT-TR
Standard Package 1,300
Win Source Part Number 1038976-SJ2-2503A-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ2-2503A-SMT-TR CAD Model

Description

The SJ2 series of surface mount, right-angle phone jacks from CUI Devices is a 4-conductor, 4-contact connector with a mating diameter of 2.50mm.

  • Conductors: 4
  • Contacts: 4
  • Mating Diameter: 2.50mm
  • Voltage Rating: 12VDC
  • Current Rating: 1A
  • Termination: Solder
  • Contact Plating: Silver
  • Contact Material: Copper Alloy
  • Mating Length: 0.433 inches
  • Operating Temperature: -25°C to 85°C
  • Body Color: Black
  • Packaging: Tape and Reel
  • Standard Package: 1,300 units
  • ECCN: EAR99
  • Status: Obsolete
