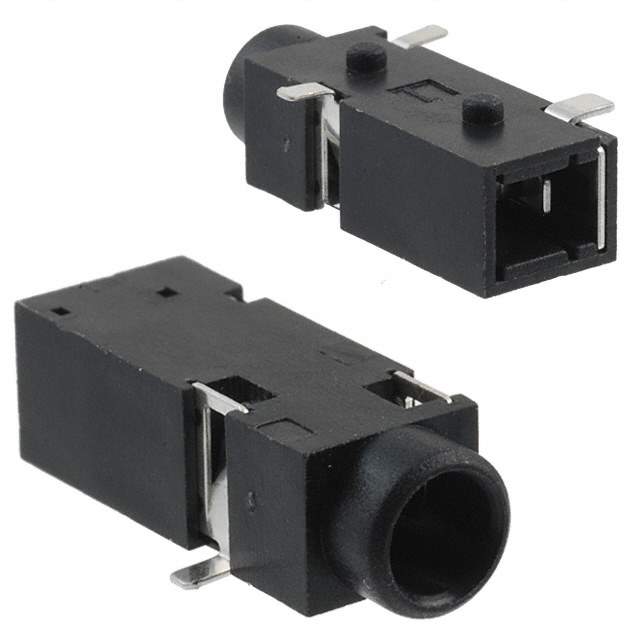

SJ-3523-SMT-TR

Part No SJ-3523-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK STEREO 3.5MM SMD R/A / Conn 3.5MM Stereo Jack F 3 POS Solder RA SMD 3 Terminal 1 Port T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer CUI Inc.
Series SJ
Packaging Reel package
Connector Type Phone Jack
Gender Female
Signal Lines Stereo
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 3 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Voltage Rating DC 12VDC
Current Rating 1A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Silver
Body Color Black
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Copper Alloy
Operating Temperature Range -25°C ~ 85°C
Win Source Part Number 794437-SJ-3523-SMT-TR
Popularity Medium
Supply and Demand Status Limited
Family Name SJ-3523
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian SJ-3523-SMT-TR CAD Model

Description

The 794437-SJ-3523-SMT-TR is a phone jack connector from CUI Inc.

  • Series: SJ
  • Mounting: Surface Mount, Right Angle
  • Board Guide: Yes
  • Conductors: 3
  • Contacts: 3
  • Contact Material: Copper Alloy with Silver Plating
  • Voltage Rating: 12VDC
  • Shielding: Unshielded
  • Housing Material: Polyamide (PA6T) and Nylon 6T
  • Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
  • Mating Length/Depth: 0.551" (14.00mm)
  • Actual Diameter: 0.142" (3.60mm)
  • Temperature Range: -25°C ~ 85°C
  • Category: Connectors and Interconnects
  • Popularity: Medium
  • Supply and Demand Status: Limited
