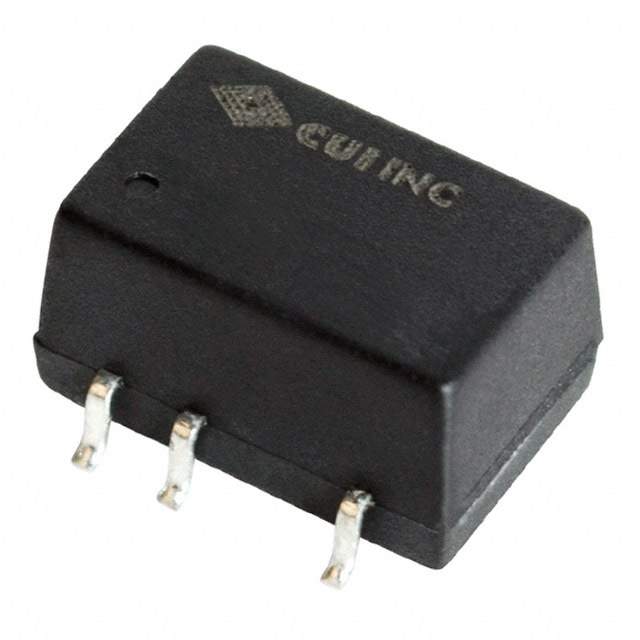

Same model may have multiple batches, images only for reference.

PDS1-S12-S5-M-TR

Name: PDS1-S12-S5-M-TR
Brand: CUI Inc.
SKU: 1203027
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PDS1-S12-S5-M-TR
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
Datasheet	PDS1-S12-S5-M-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	CUI Inc.
Series	PDS1-M (1W)
Package	Tape & Reel
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	80%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Approval Agency	EN, UL
Standard Number	55024; 55032 Class A; 60950-1
Base Product Number	PDS1-S12
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	102-2682-1,102-2682-2,PDS1S12S5MTR,102-2682-6
Standard Package	500
Win Source Part Number	1203027-PDS1-S12-S5-M-TR
Ultra Librarian 3D Model	Ultra Librarian PDS1-S12-S5-M-TR CAD Model

Alternative Products

Description

The CUI Inc. PDS1-S12-S5-M-TR is an isolated module type electronic component with a power of 1W.

Feature: SCP
Voltage Isolation: 1.5kV
Number of Outputs: 1
Maximum Current Output: 200mA
Voltage Input: 10.8V to 13.2V
Voltage Output: 5V
Efficiency: 80%
Package/Case: 8-SMD Module, 5 Leads
Operating Temperature: -40°C to 105°C (With Derating)
Win Source Part Number: 1203027-PDS1-S12-S5-M-TR
Manufacturer: CUI Inc.
Other Names: 102-2682-1, 102-2682-2, PDS1S12S5MTR, 102-2682-6
Approvals: EN, UL
Standards: 55024, 55032 Class A, 60950-1
