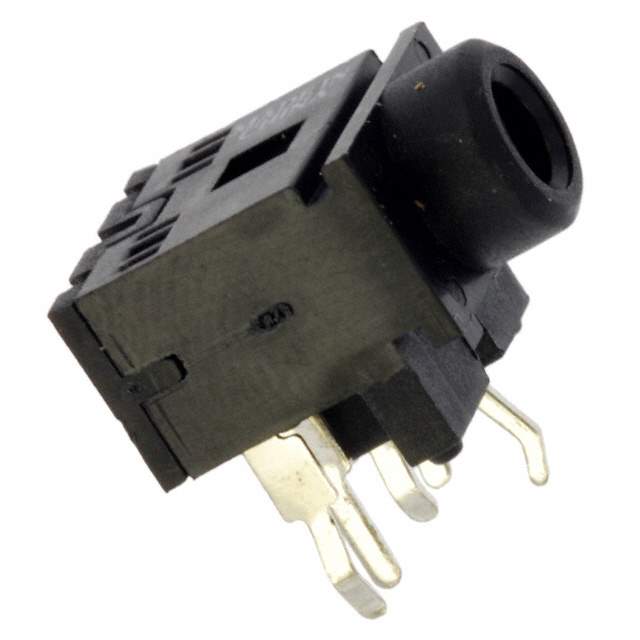

SJ1-3555NG

Name: SJ1-3555NG
Brand: CUI Inc.
SKU: 1333986
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJ1-3555NG
Manufacturer	CUI Inc.
Catalog	Barrel - Audio Connectors
Description	CONN JACK STEREO 3.5MM R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
Datasheet	SJ1-3555NG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Audio Connectors
Manufacturer	CUI Devices
Packaging	Bag
Connector Type	Phone Jack
Gender	Female
Signal Lines	Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter	0.142" (3.60mm)
Number of Positions/Contacts	3 Conductors, 5 Contacts
Internal Switch(s)	Two Switches
Mounting	Through Hole, Right Angle
Termination	Kinked Pin
Shielding	Unshielded
Temperature Range - Operating	-25°C ~ 85°C
Voltage - Rated	12VDC
Current Rating (Amps)	1 A
Mating Length/Depth	0.551" (14.00mm)
Contact Material - Plating	Tin
Body Color	Black
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass; Copper Alloy
Base Product Number	SJ1-35
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SJ13555NG,045-0994R,CP1-3555NG
Standard Package	500
Win Source Part Number	1333986-SJ1-3555NG
Ultra Librarian 3D Model	Ultra Librarian SJ1-3555NG CAD Model

Description

The CUI Devices SJ1-3555NG is a female phone jack connector that provides reliable performance for a variety of audio applications.

Termination: Kinked Pin
Contact Material: Brass and Copper Alloy
Shielding: Unshielded
Housing Material: Polybutylene Terephthalate (PBT)
Mounting Style: Through-Hole, Right Angle
Voltage Rating: 12VDC
Conductor: 3
Contact: 5
Internal Switches: Two
Contact Material Plating: Tin
Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter: 0.142" (3.60mm)
ROHS3: Compliant
ECCN: EAR99
Current Rating: 1 A
REACH: Unaffected
HTSUS: 8536.69.4040
