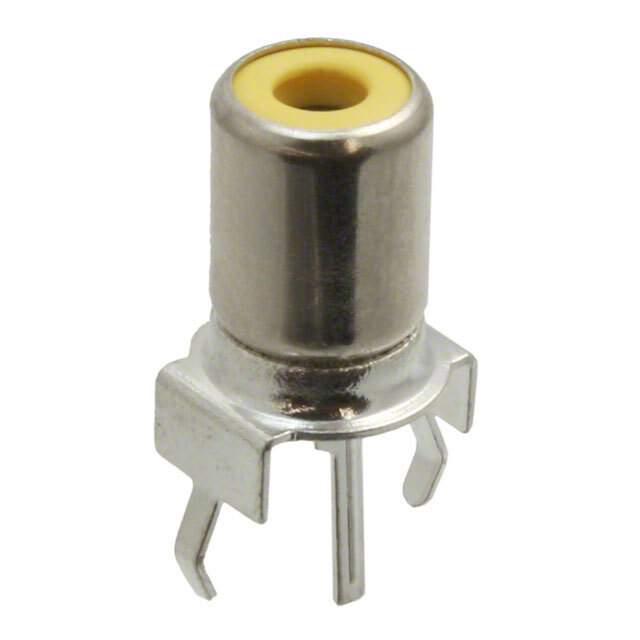

RCJ-024 Real Image
Same model may have multiple batches, images only for reference.

RCJ-024

Part No RCJ-024
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN RCA JACK MONO 3.2MM PCB / 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Audio Connectors
Manufacturer CUI Devices
Packaging Bag
Connector Type Phono (RCA) Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 3.20mm ID, 9.00mm OD (RCA)
Actual Diameter 0.138" (3.50mm ID), 0.327" (8.30mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Through Hole
Termination Solder
Shielding Unshielded
Features Board Lock
Insulation Color Yellow
Temperature Range - Operating -20°C ~ 85°C
Contact Material - Plating Nickel
Body Material Brass
Body Color Silver
Contact Material Brass
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 045-0670R,RCJ024,Q7198168,CP-1409,2266-RCJ-024,CP-1409-NDR
Standard Package 500
Win Source Part Number 1333988-RCJ-024
Ultra Librarian 3D Model Ultra Librarian RCJ-024 CAD Model

Description

The 1333988-RCJ-024 Phono (RCA) Jack Connector by CUI Devices is a female board mount component that features board lock.

  • Standard Package: 500
  • Mounting Feature: Through-Hole
  • Connector Type: Phono (RCA) Jack
  • Termination: Solder
  • Contact Material: Brass
  • Gender: Female
  • Conductor: 2
  • Contact: 2
  • Internal Switch: No
  • Contact Material-Plating: Nickel
  • Insulation Color: Yellow
  • Shielding: Unshielded
  • Body Color: Silver
  • RoHS: Compliant
  • ECCN: EAR99
