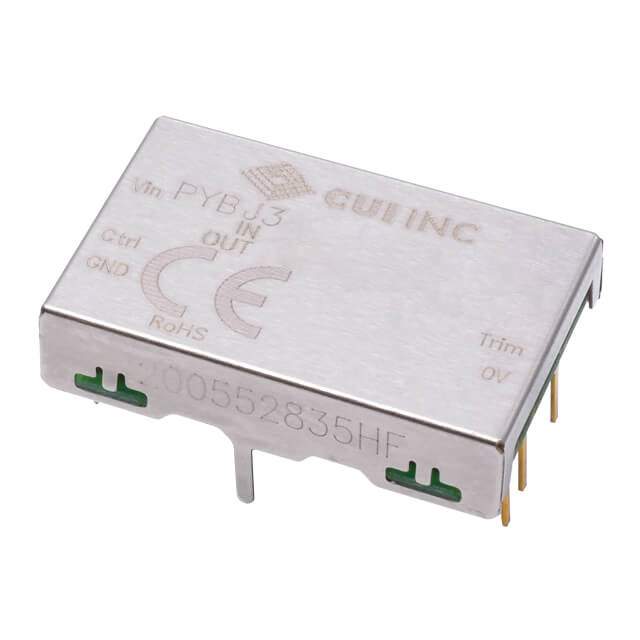

Same model may have multiple batches, images only for reference.

PYBJ3-D24-S5-D

Name: PYBJ3-D24-S5-D
Brand: CUI Inc.
SKU: 1351020
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PYBJ3-D24-S5-D
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 36V Input
Datasheet	PYBJ3-D24-S5-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PYBJ3 (3W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	600mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	77%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	0.98" L x 0.61" W x 0.27" H (25.0mm x 15.6mm x 6.8mm)
Approval Agency	CE
Base Product Number	PYBJ3
Standard Package	10
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1351020-PYBJ3-D24-S5-D
Ultra Librarian 3D Model	Ultra Librarian PYBJ3-D24-S5-D CAD Model

Alternative Products

Description

The CUI Inc. PYBJ3-D (3W) series DC-to-DC converter, PYBJ3-D24-S5-D, is a 2W power supply module in a 6-DIP package.

Voltage Input Range: 9V to 36V
Voltage Output: 5V
Efficiency: 77%
Maximum Output Current: 600mA
Voltage Isolation: 1.5 kV
Application: ITE (Commercial)
Approval: CE
Operating Temperature: -40°C to 85°C with derating
