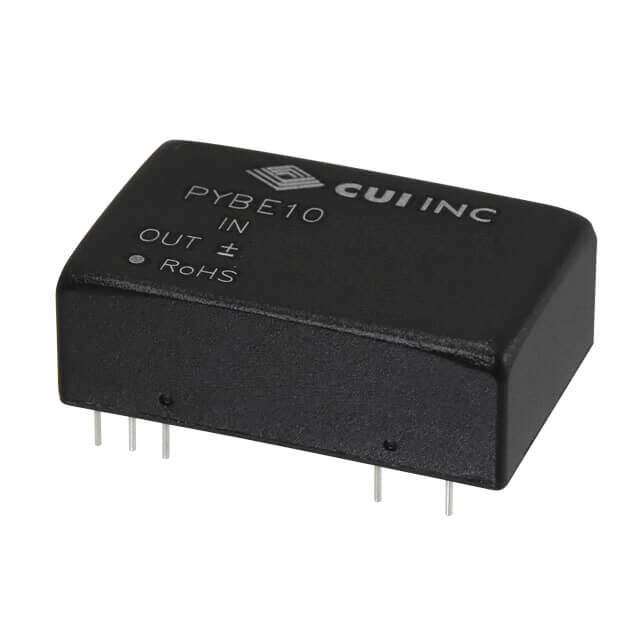

PYBE10-Q24-S3

Name: PYBE10-Q24-S3
Brand: CUI Inc.
SKU: 1349318
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PYBE10-Q24-S3
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 7.9W / Isolated Module DC DC Converter 1 Output 3.3V 2.4A 9V - 36V Input
Datasheet	PYBE10-Q24-S3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PYBE10 (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	2.4A
Power (Watts)	7.9 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	87%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Approval Agency	EN
Standard Number	55024; 55032 Class A
Base Product Number	PYBE10
Standard Package	15
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1349318-PYBE10-Q24-S3
Ultra Librarian 3D Model	Ultra Librarian PYBE10-Q24-S3 CAD Model

Alternative Products

Description

The PYBE10 series of isolated DC/DC converters from CUI Inc. is a 10W power supply with a single output voltage of 3.3VDC and a current output of 2.4A.

Series: PYBE10
Power (Watts): 10W
Output Voltage: 3.3VDC
Output Current: 2.4A
Input Voltage Range: 9VDC to 36VDC
Isolation Voltage: 1.5kV
Features: Remote On/Off, OCP, OVP, SCP
Mounting Type: Through Hole
Operating Temperature: -40°C to 85°C with derating
Dimensions: 32mm x 20mm x 10.8mm
Packaging: Tubes
Standard Package: 15
ECCN: EAR99
