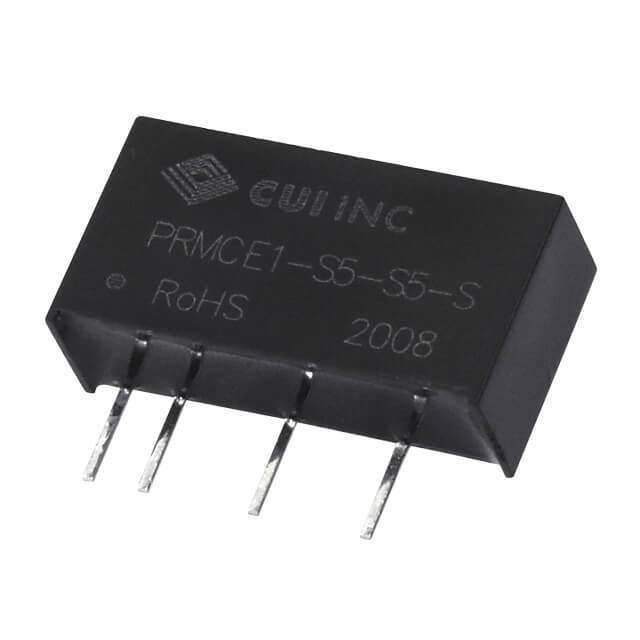

Same model may have multiple batches, images only for reference.

PRMCE1-S5-S3-S

Name: PRMCE1-S5-S3-S
Brand: CUI Inc.
SKU: 1339767
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PRMCE1-S5-S3-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 825MW / Isolated Module DC DC Converter 1 Output 3.3V 250mA 4.75V - 5.25V Input
Datasheet	PRMCE1-S5-S3-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PRMCE1-S
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.75V
Voltage - Input (Max)	5.25V
Voltage - Output 1	3.3V
Current - Output (Max)	250mA
Power (Watts)	825 mW
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	67%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Approval Agency	EN
Standard Number	55024; 55032 Class A
Base Product Number	PRMCE1
Standard Package	25
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1339767-PRMCE1-S5-S3-S
Ultra Librarian 3D Model	Ultra Librarian PRMCE1-S5-S3-S CAD Model

Alternative Products

Description

The PRMCE1-S series isolated module DC-DC converter from CUI Inc. has a power rating of 825 mW and a voltage isolation rating of 3 kV.

Power Rating: 825 mW
Voltage Isolation: 3 kV
Current Output: 250mA
Voltage Input: 4.75V to 5.25V
Efficiency: 67%
Mounting Type: Through Hole
Operating Temperature: -40°C to 85°C (with derating)
Size/Dimension: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Standard Package: 25
Package/Case: 7-SIP Module, 4 Leads
Approvals: EN
