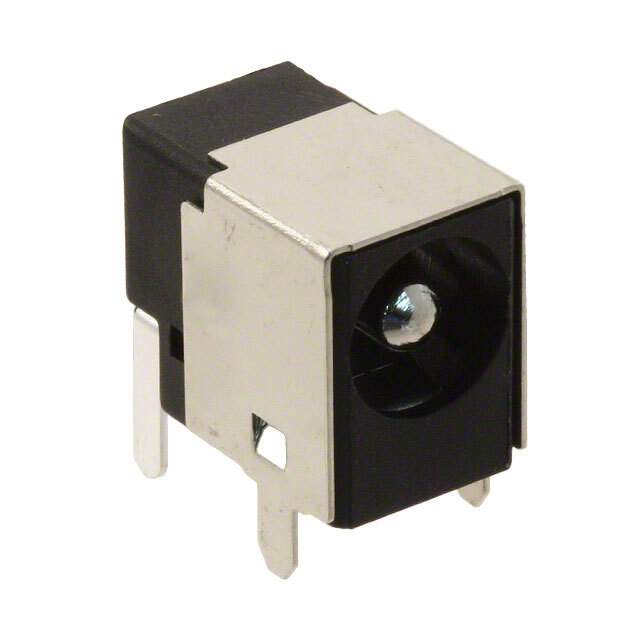

PJ-047BH

Name: PJ-047BH
Brand: CUI Inc.
SKU: 1334256
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PJ-047BH
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet	PJ-047BH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer	CUI Devices
Packaging	Tray
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter	0.098" (2.50mm ID), 0.236" (6.00mm OD)
Number of Positions/Contacts	2 Conductors, 3 Contacts
Internal Switch(s)	Single Switch, Normally Closed
Mounting	Through Hole, Right Angle
Termination	Solder
Shielding	Shielded
Voltage - Rated	24VDC
Current Rating (Amps)	5 A
Mating Length/Depth	0.327" (8.30mm)
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Silver
Temperature Range - Operating	-25°C ~ 85°C
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass, Copper Alloy
Body Color	Black
Base Product Number	PJ-047
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	CP-047BH,045-1181R,PJ047BH
Standard Package	350
Win Source Part Number	1334256-PJ-047BH
Ultra Librarian 3D Model	Ultra Librarian PJ-047BH CAD Model

Description

The CUI Devices PJ-047BH is a 2 conductor, 3 contact male jack connector with a rated voltage of 24VDC and a current rating of 5A.

Conductors: 2
Contacts: 3
Connector Type: Male Jack
Voltage Rating: 24VDC
Current Rating: 5A
Shielded: Yes
Material Flammability Rating: UL94 V-0
Packaging: Tray
Mounting: Through hole, right angle
REACH: Unaffected
