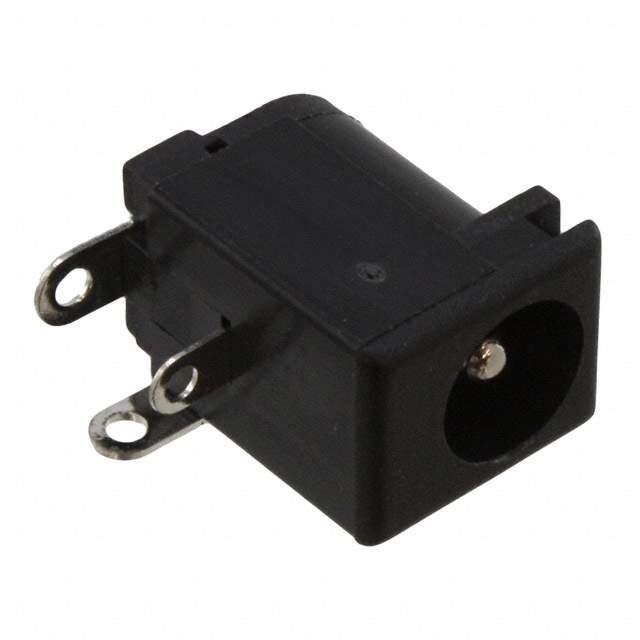

PJ-002A Real Image
Same model may have multiple batches, images only for reference.

PJ-002A

Part No PJ-002A
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2X5.5MM SOLDER / Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet
PJ-002A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer CUI Devices
Packaging Bag
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Through Hole, Right Angle
Termination Solder Eyelet(s)
Shielding Unshielded
Voltage - Rated 24VDC
Current Rating (Amps) 2.5 A
Mating Length/Depth 0.354" (9.00mm)
Material Flammability Rating UL94 V-0
Contact Material - Plating Tin
Temperature Range - Operating -25°C ~ 85°C
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Brass, Copper Alloy
Body Color Black
Base Product Number PJ-002
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number Q3256014,PJ002A,CP-002A,CP-002A-NDR,045-0090R
Standard Package 500
Win Source Part Number 1334438-PJ-002A
Ultra Librarian 3D Model Ultra Librarian PJ-002A CAD Model

Description

The PJ-002A from CUI Devices is a power connector with 2 conductors and 3 contacts.

  • Connector Type: Jack
  • Termination: Solder Eyelet(s)
  • Packaging: Bag
  • Contact Material: Brass and Copper Alloy
  • Gender: Male
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Other Part Numbers: Q3256014, PJ002A, CP-002A, CP-002A-NDR, and 045-0090R
