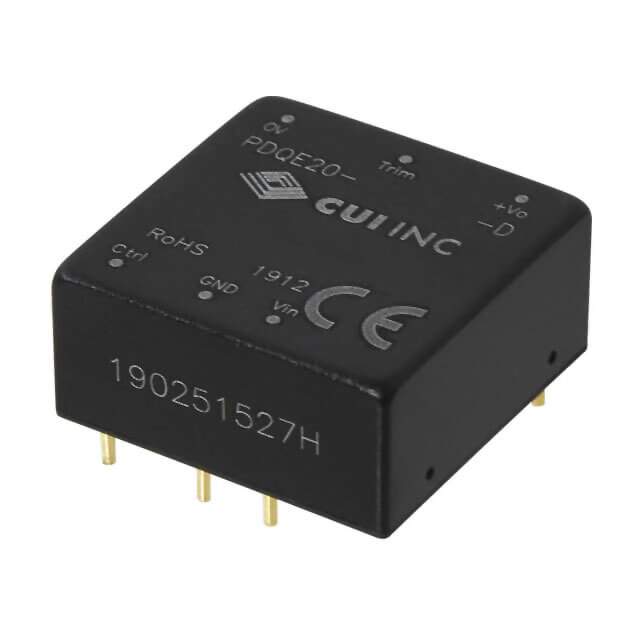

PDQE20-Q48-D24-D

Name: PDQE20-Q48-D24-D
Brand: CUI Inc.
SKU: 1340221
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PDQE20-Q48-D24-D
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-24V 20W / Isolated Module DC DC Converter 2 Output 24V -24V 417mA, 417mA 18V - 75V Input
Datasheet	PDQE20-Q48-D24-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PDQE20-D (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	24V
Voltage - Output 2	-24V
Current - Output (Max)	417mA, 417mA
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	90%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Approval Agency	EN
Standard Number	55024; 55032 Class A
Base Product Number	PDQE20
Standard Package	19
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340221-PDQE20-Q48-D24-D
Ultra Librarian 3D Model	Ultra Librarian PDQE20-Q48-D24-D CAD Model

Alternative Products

Description

The PDQE20-D (20W) isolated module DC-DC converter from CUI Inc. is a power supply board mount converter that is ideal for ITE (Commercial) applications.

Voltage Isolation: 1.5 kV
Efficiency: 90%
Maximum Current Output: 417mA
Input Voltage Range: 18V to 75V
Outputs: 2 outputs with an output voltage of 24V and -24V
Package Size: 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Package: comes in a tube package
Mounting Type: through-hole
Package/Case: 6-DIP module
Operating Temperature: -40°C to 105°C (with derating)
Approvals: EN approved and complies with standard number 55024 and 55032 Class A
