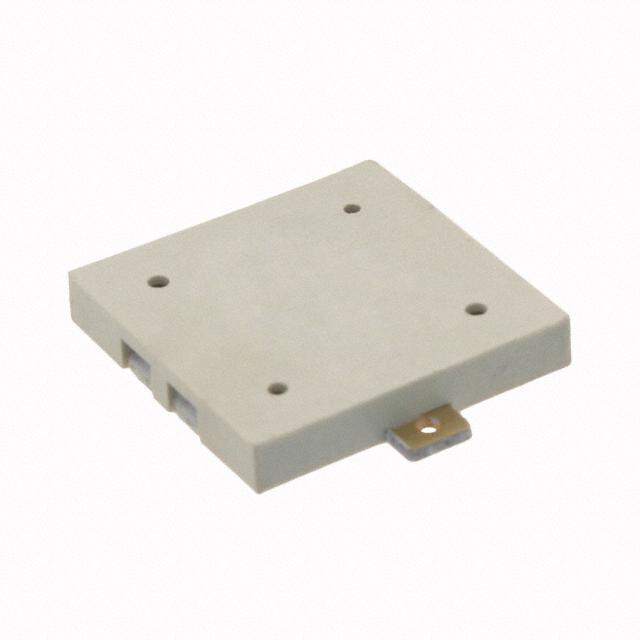

CMT-1603-SMT-TR CUI Inc.
Same model may have multiple batches, images only for reference.

CMT-1603-SMT-TR

Part No CMT-1603-SMT-TR
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 25V SMD / Audio Buzzer Piezo 25Vp-p 3mA 70dB Surface Mount Solder Pad T/R
Datasheet
CMT-1603-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Series CMT
Packaging Reel package
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage Rating DC 3V
Voltage Range 25V (Maximum)
Frequency 4kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 70dB @ 3V, 10cm
Operating Supply Current 3mA
Port Location Side
Operating Temperature Range -30°C ~ 70°C
Mounting SMD
Termination Solder Pads
Dimension 0.630" L x 0.630" W (16.00mm x 16.00mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Win Source Part Number 771646-CMT-1603-SMT-TR
Popularity Medium
Supply and Demand Status Limited
Family Name CMT
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CMT-1603-SMT-TR CAD Model

Description

The 771646-CMT-1603-SMT-TR piezo technology electronic component is manufactured by CUI Inc.

  • Series: CMT
  • Frequency: 4kHz
  • Input Type: Peak-Peak Signal
  • Mode: Single Tone
  • Voltage Range: 25V (maximum)
  • Sound Pressure Level: 70dB @ 3V, 10cm
  • Voltage Rating DC: 3V
