Same model may have multiple batches, images only for reference.

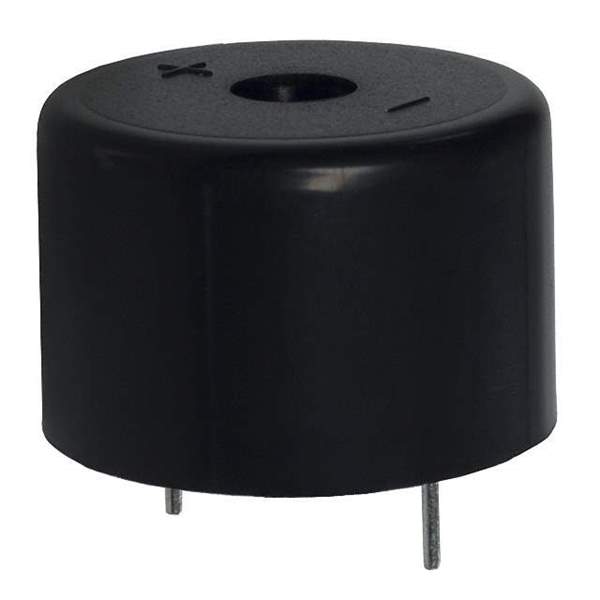

CEP-2202A Real Image
Same model may have multiple batches, images only for reference.

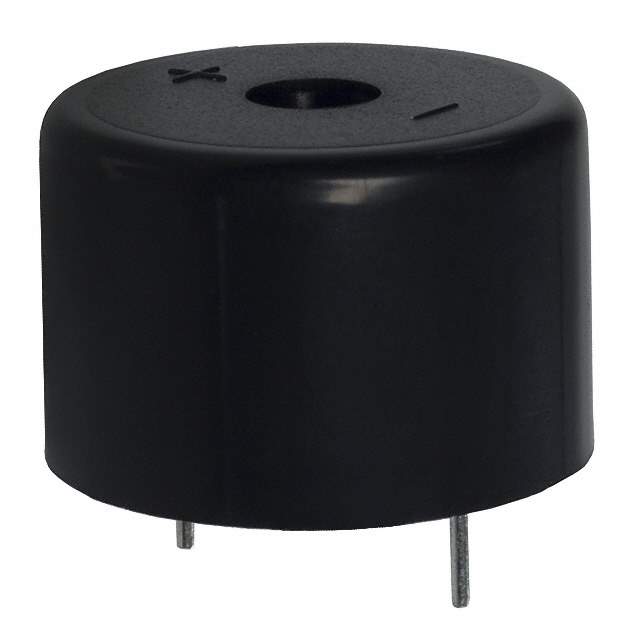

CEP-2202A

Part No CEP-2202A
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER PIEZO 12V 24.2MM TH / Buzzers Indicator, Internally Driven Piezo 12 V 11mA 3kHz 85dB @ 12V, 30cm Through Hole PC Pins
Datasheet
CEP-2202A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr CUI Devices
Series CEP
Package Tray
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 12 V
Voltage Range 3 ~ 20V
Frequency 3kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 12V, 30cm
Current - Supply 11mA
Port Location Top
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Through Hole
Termination PC Pins
Dimension 0.953" Dia (24.20mm)
Height - Seated (Max) 0.650" (16.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Names SEP-2202A,Q3134616WWW,102-1116-NDR,102-1116,CEP2202A,SEP2202A,037-4167R
Standard Package 250
Win Source Part Number 1002561-CEP-2202A
Ultra Librarian 3D Model Ultra Librarian CEP-2202A CAD Model

Description

The CUI Devices CEP-2202A is a piezo buzzer with a rated voltage of 12V and a frequency of 3kHz.

  • Rated Voltage: 12V
  • Frequency: 3kHz
  • Sound Pressure Level (SPL): 85dB @ 12V and 30cm
  • Operating Temperature: -30°C to 85°C
  • Drive: internally driven
  • Current Supply: 11mA
  • Package: tray
  • Height (Seated): 0.650" (16.50mm)
  • Series: CEP
  • Standard Package: 250
