Same model may have multiple batches, images only for reference.

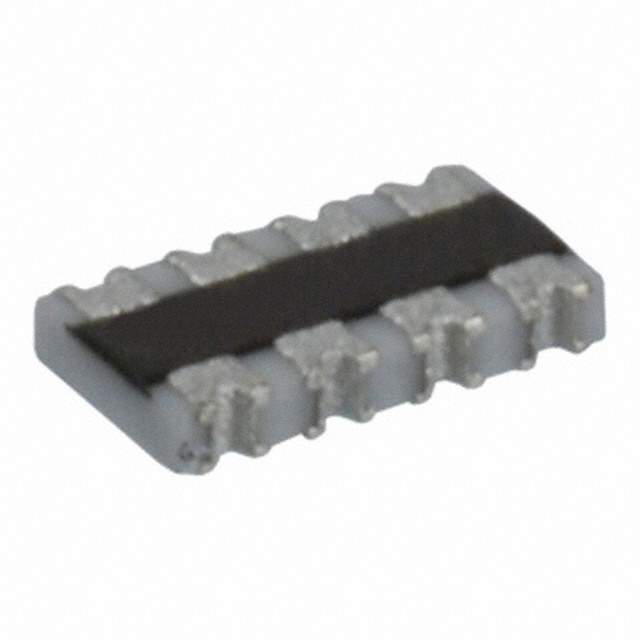

741C083330JP Real Image
Same model may have multiple batches, images only for reference.

741C083330JP

Part No 741C083330JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 33 OHM 0804 / 33 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Concave, Long Side Terminals
Datasheet
741C083330JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 741
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 33
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0804, Concave, Long Side Terminals
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.020" (0.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names 741C083330JPDKR,741C083330JPTR,741C083330JPCT
Standard Package 10,000
Win Source Part Number 1115232-741C083330JP
Ultra Librarian 3D Model Ultra Librarian 741C083330JP CAD Model

Description

The CTS Resistor Products 741C083330JP resistor network/array is a surface mount device with a resistance of 33 Ohm ±5%.

  • Resistance: 33 Ohm ±5%
  • Power per Element: 62.5mW
  • Temperature Coefficient: ±200ppm/°C
  • Number of Resistors: 4
  • Number of Pins: 8
  • Isolation: Isolated
  • Tolerance: ±5%
  • Package: Tape & Reel
  • Operating Temperature Range: -55°C to 125°C
  • Package: 0804, concave, long side terminals
  • Dimension: 0.079" L x 0.039" W (2.00mm x 1.00mm)
