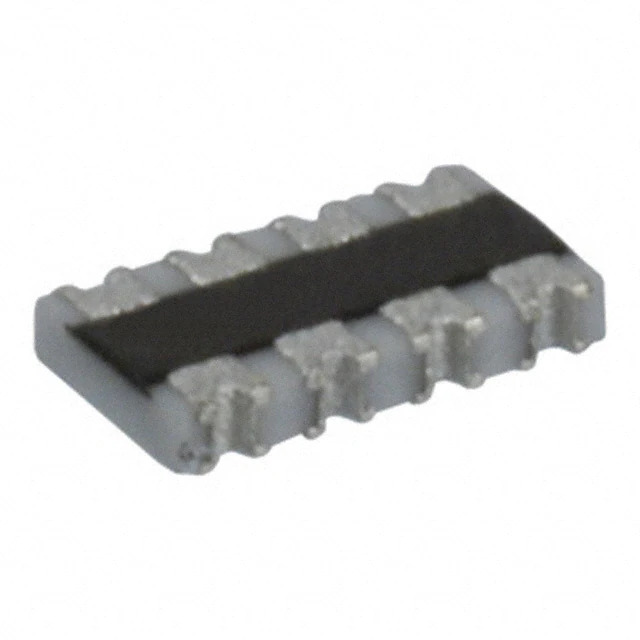

741C083220JP CTS Resistor Products
Same model may have multiple batches, images only for reference.

741C083220JP

Part No 741C083220JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 22 OHM 0804
Datasheet
741C083220JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 741
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 22
Tolerance ±5%
Number of Resistors 4
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 8
Power Per Element 63mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200, DDR SDRAM, DRAM, MDDR
Mounting Type Surface Mount
Package / Case 0804, Concave, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.020" (0.50mm)
Base Product Number 741C083
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1374022-741C083220JP
Ultra Librarian 3D Model Ultra Librarian 741C083220JP CAD Model

Description

The 1374022-741C083220JP is a resistor network array manufactured by CTS Resistor Products.

  • Type: Resistor Network Array
  • Series: 741
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Package/Case Size: 0804
  • Resistance: 22 ohms
  • Number of Resistors: 4
  • Tolerance: ±5%
  • Power Per Element: 63mW
  • Temperature Coefficient: ±200ppm/°C
  • Applications: Automotive AEC-Q200, DDR SDRAM, DRAM, and MDDR
  • Temperature Range: -55°C to 125°C
  • Product Status: Active
  • REACH Compliance: Unaffected
