Same model may have multiple batches, images only for reference.

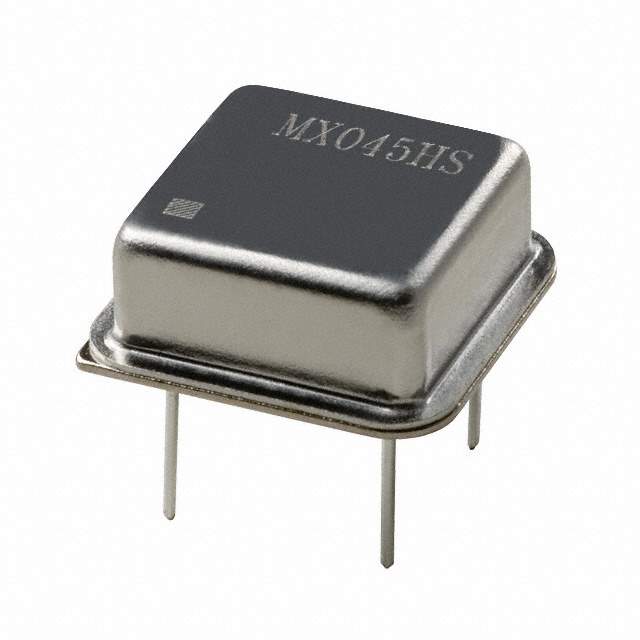

MXO45HS-2C-80M0000 Real Image
Same model may have multiple batches, images only for reference.

MXO45HS-2C-80M0000

Part No MXO45HS-2C-80M0000
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description OSC XO 80.000MHZ HCMOS TTL PIN
Datasheet
MXO45HS-2C-80M0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer CTS-Frequency Controls
Series MXO45HS
Packaging Bulk
Type XO (Standard)
Frequency 80MHz
Output HCMOS, TTL
Operating Supply Voltage 5V
Frequency Stability ±100ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 60mA
Mounting Style Through Hole
Package 8-DIP, 4 Leads (Half Size, Metal Can)
Dimension 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Current - Supply (Disable) (Maximum) 10μA
Win Source Part Number 798577-MXO45HS-2C-80M0000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MXO45HS-2C-80M0000 CAD Model

Description

This electronic component is a crystal oscillator that is manufactured by CTS-Frequency Controls.

  • Win Source Part Number: 798577-MXO45HS-2C-80M0000
  • Series: MXO45HS
  • Packaging: Bulk
  • Type: XO (Standard)
  • Mounting: Through Hole
  • Frequency: 80MHz
  • Operating Temperature Range: -20°C to 70°C
  • Output: HCMOS, TTL
  • Frequency Stability: ±100ppm
