Same model may have multiple batches, images only for reference.

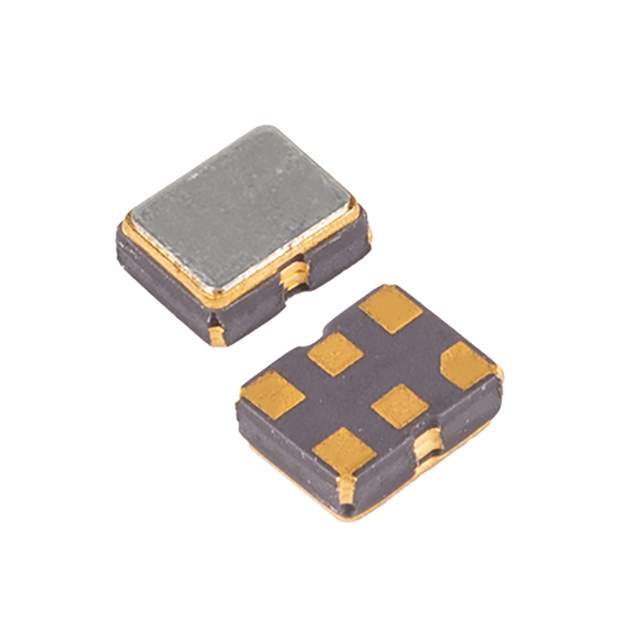

626L1945IMT Real Image
Same model may have multiple batches, images only for reference.

626L1945IMT

Part No 626L1945IMT
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 19.44MHZ 1.8V LVDS / 19.44 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 6-SMD, No Lead
Datasheet
626L1945IMT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr CTS-Frequency Controls
Series 626
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 19.44 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 1.8V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 20mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1203603-626L1945IMT
Ultra Librarian 3D Model Ultra Librarian 626L1945IMT CAD Model

Description

The CTS-Frequency Controls 1203603-626L1945IMT is a 19.44MHz XO (Standard) oscillator that operates in an enable/disable mode.

  • Frequency: 19.44MHz
  • Function: Enable/Disable
  • Output: LVDS
  • Frequency Stability: ±25ppm
  • Current Supply: 20mA
  • Disable Current Supply: 15µA
  • Package: 6-SMD, No Lead
  • Height: 0.043" (1.10mm)
  • Operating Temperature: -40°C to 85°C
  • Series: 626
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Packaging: Tape and Reel
  • Application: Crystals, Oscillators, Resonators
