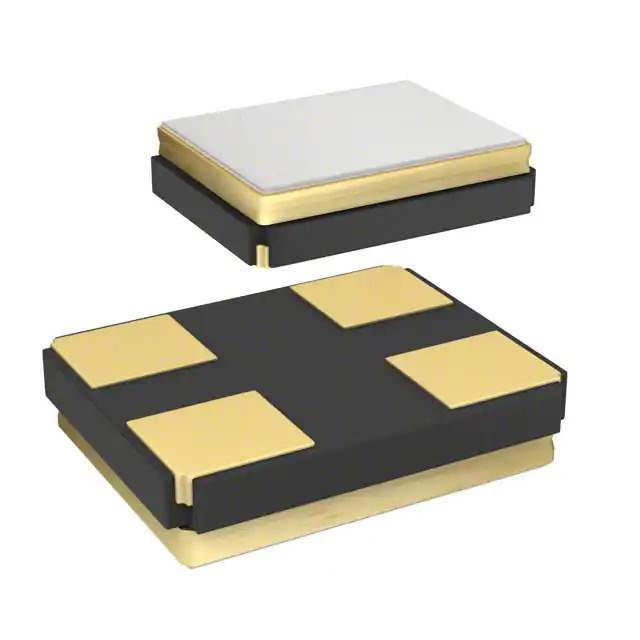

416F24022IKR Real Image
Same model may have multiple batches, images only for reference.

416F24022IKR

Part No 416F24022IKR
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 8PF SMD
Datasheet
416F24022IKR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr CTS-Frequency Controls
Series 416
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 120 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.018" (0.45mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
California Prop 65 Warning Information
Win Source Part Number 856002-416F24022IKR
Ultra Librarian 3D Model Ultra Librarian 416F24022IKR CAD Model

Description

The 856002-416F24022IKR is a 24 MHz crystal from the 416 series. 856002-416F24022IKR.

  • Frequency: 24 MHz
  • Packaging: Tape and Reel
  • Size/Dimension: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Seated Height: 0.018" (0.45mm)
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • ESR: 120 Ohms
  • Load Capacitance: 8pF
  • Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package: 4-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: CTS-Frequency Controls
  • Product Status: Active
