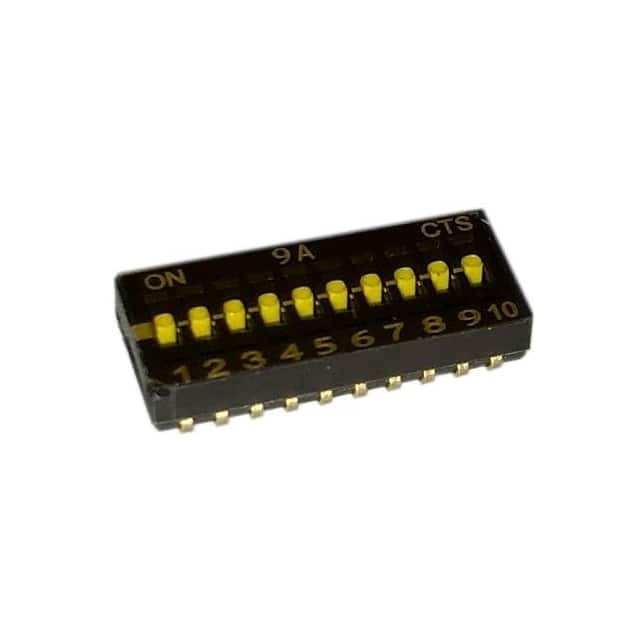

218-10LPSTJR
Same model may have multiple batches, images only for reference.

218-10LPSTJR

Part No 218-10LPSTJR
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
218-10LPSTJR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 218
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.106" (2.70mm)
Mounting Type Surface Mount
Termination Style J Lead
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.546" (13.87mm)
Electrical Life 1,000 Cycles
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 854580-218-10LPSTJR
Ultra Librarian 3D Model Ultra Librarian 218-10LPSTJR CAD Model

Description

The 854580-218-10LPSTJR is a DIP switch from the 218 series.

  • Positions: 10
  • Pitch: 0.050" (1.27mm)
  • Mounting: Surface mount
  • Features: Epoxy sealed terminals and a tape seal
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Height Above Board: 0.106" (2.70mm)
  • Length: 0.546" (13.87mm)
  • Package: 2,000 pieces
  • Circuit: SPST
  • Actuator Type: Slide
  • Electrical Life: 1,000 cycles
  • Washable: Yes
  • Operating Temperature: -55°C to 85°C
  • REACH: Unaffected
  • Manufacturer: CTS Electrocomponents
  • Status: Active
  • Prop 65 Warning: Contains materials subject to California Prop 65
