Same model may have multiple batches, images only for reference.

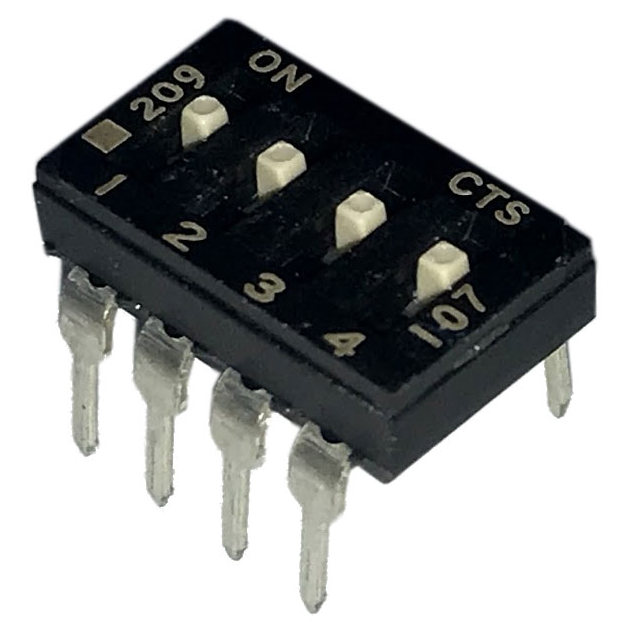

209-4MS Real Image
Same model may have multiple batches, images only for reference.

209-4MS

Part No 209-4MS
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 20V / Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 100mA 20VDC
Datasheet
209-4MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Manufacturer CTS Electrocomponents
Packaging Tube
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.190" (4.83mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Length 0.458" (11.63mm)
Electrical Life 2,000 Cycles
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number CT2094MS-NDR,Q4400189F,209004MS,CT2094MS,2094MS
Standard Package 45
Win Source Part Number 1323861-209-4MS
Ultra Librarian 3D Model Ultra Librarian 209-4MS CAD Model

Description

The 209-4MS is a DIP switch from CTS Electrocomponents that is designed for various electronic applications.

  • Category: switches
  • Packaging: tube
  • Number of Positions: 4
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: PC Pin
  • Features: epoxy sealed terminals
  • Contact Finish: gold
  • Contact Material: beryllium copper
  • Voltage Rating: 20VDC
  • Height above Board: 0.190" (4.83mm)
  • Length: 0.458" (11.63mm)
  • Standard Package: 45
  • Mounting Type: through-hole
  • Circuit: SPST
  • Actuator Type: slide (standard)
  • Electrical Life: 2,000 cycles
  • Actuator Level: raised
  • Washable: no
  • Temperature Range: -40°C to 85°C
  • Current Rating (amps): 100mA
  • RoHS Status: ROHS3 compliant
  • Other Part Numbers: CT2094MS-NDR, Q4400189F, 209004MS, CT2094MS, 2094MS
  • REACH Status: REACH unaffected
