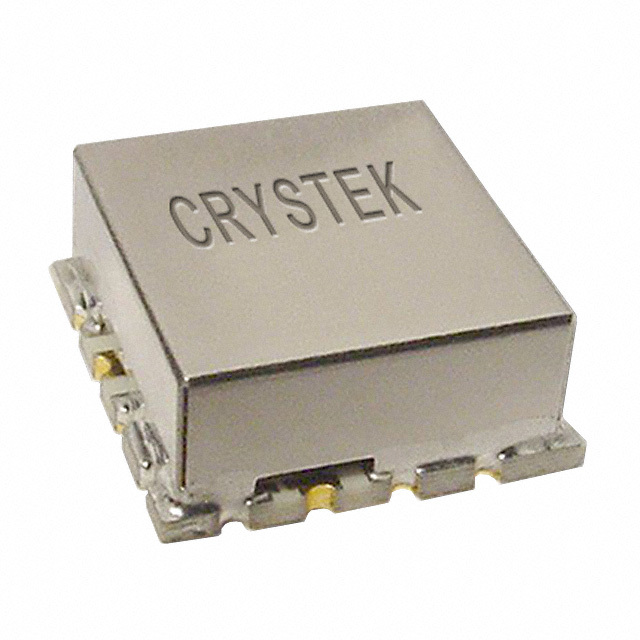

Same model may have multiple batches, images only for reference.
CVCO55CC-1560-1615 Crystek Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CVCO55CC-1560-1615

Part No CVCO55CC-1560-1615
Manufacturer Crystek Corporation
Catalog VCOs (Voltage Controlled Oscillators)
Description VCO 1587.5MHZ 0.3-4.7V 12.7X12.7
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Frequency Range 1560 ~ 1615MHz
Frequency - Center 1587.5MHz
Voltage - Supply 5V
Tuning Voltage (VDC) 0.3 V ~ 4.7 V
2nd Harmonic, Typ (dBc) -15
Icc Max 25mA (Typ)
Pushing (MHz/V) 1
Power (dBm) 3 ±3
Phase Noise Typ (dBc/Hz) -112 (Max)
Temperature Range - Operating -40°C ~ 85°C
Case / Package 16-QFN, Variant
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height 0.220\
Package Strip
Supply and Demand Status Shortage
Win Source Part Number 1530134-CVCO55CC-1560-1615
Ultra Librarian 3D Model Ultra Librarian CVCO55CC-1560-1615 CAD Model

Description

N
