Same model may have multiple batches, images only for reference.

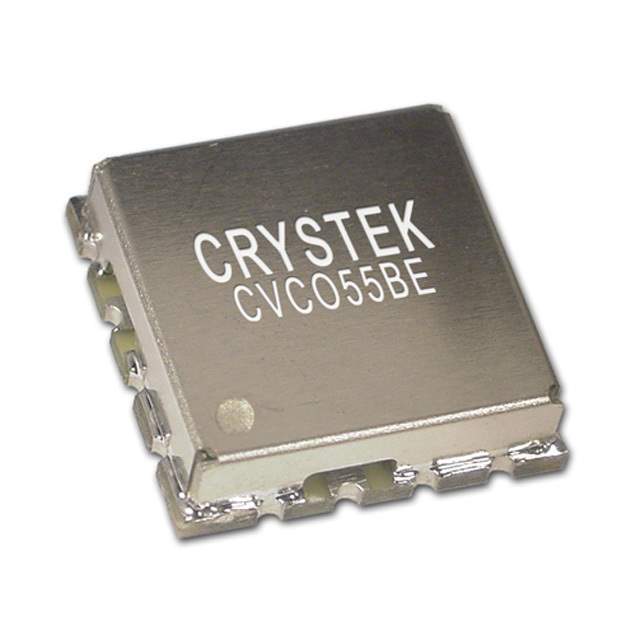

CVCO55BE-2495-2625 Real Image
Same model may have multiple batches, images only for reference.

CVCO55BE-2495-2625

Part No CVCO55BE-2495-2625
Manufacturer Crystek Corporation
Catalog Oscillators
Description VCO 2560MHZ 0.5-4.5V 12.7X12.7MM / 2560MHz Center Frequency 0.5 V ~ 4.5 V Voltage Controlled Oscillator 0 ±3 dBm -20 2nd Harmonic Typ (dBc)
Datasheet
CVCO55BE-2495-2625 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>VCOs (Voltage Controlled Oscillators)
Mfr Crystek Corporation
Series CVCO55
Package Strip
Frequency Range 2495 ~ 2625MHz
Frequency - Center 2560MHz
Voltage - Supply 5V
Tuning Voltage (VDC) 0.5 V ~ 4.5 V
2nd Harmonic, Typ (dBc) -20
Icc Max 25mA
Pushing (MHz/V) 1
Power (dBm) 0 ±3
Phase Noise Typ (dBc/Hz) -100
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-QFN, Variant
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height 0.150" (3.81mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 744-1102
Standard Package 5
Win Source Part Number 1163080-CVCO55BE-2495-2625
Ultra Librarian 3D Model Ultra Librarian CVCO55BE-2495-2625 CAD Model

Description

The CVCO55BE-2495-2625 is a voltage-controlled oscillator from Crystek Corporation that belongs to the CVCO55 series of crystals, oscillators, and resonators.

  • Package: 16-QFN
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8542.39.0001
  • Packaging: strip
  • Standard Package: 5
  • Frequency Range: 2495 ~ 2625 MHz
  • Frequency Center: 2560 MHz
  • Tuning Voltage (VDC): 0.5 V ~ 4.5 V
  • Voltage Supply: 5V
