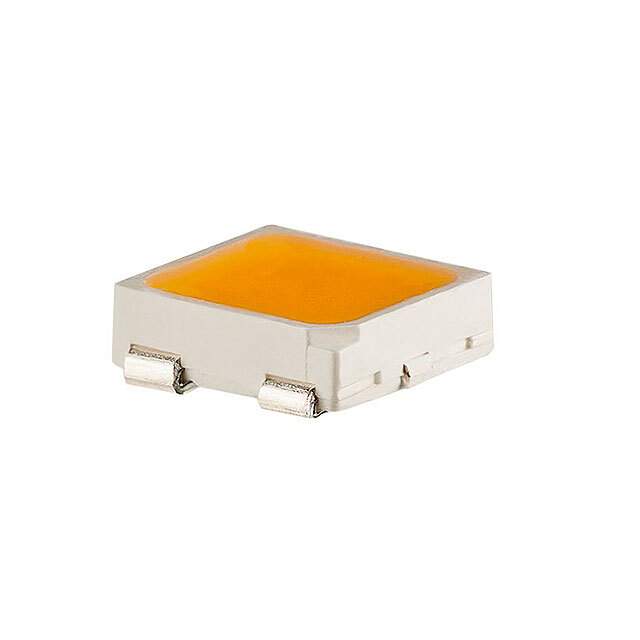

MLEAWT-A1-R250-0004E5 Real Image
Same model may have multiple batches, images only for reference.

MLEAWT-A1-R250-0004E5

Part No MLEAWT-A1-R250-0004E5
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP NEUTRAL WHT 4000K 4SMD / LED Lighting series White, Neutral 4000K (3750K ~ 4250K) 3.2V 150mA 120° 4-SMD, J-Lead Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® ML-E
Package Tape & Reel
Color White, Neutral
CCT (K) 4000K (3750K ~ 4250K)
Flux @ 85°C, Current - Test 53lm
Flux @ 25°C, Current - Test 59lm (57lm ~ 62lm)
Current - Test 150mA
Voltage - Forward (Vf) (Typ) 3.2V
Lumens/Watt @ Current - Test 123 lm/W
CRI (Color Rendering Index) 80
Current - Max 175mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 4-SMD, J-Lead Exposed Pad
Supplier Device Package SMD
Dimension 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) 0.052" (1.33mm)
Thermal Resistance of Package 11°C/W
Base Product Number MLEAWT
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names MLEAWT-A1-R250-0004E5CT,MLEAWTA1R2500004E5,MLEAWT-A1-R250-0004E5TR,MLEAWT-A1-R250-0004E5DKR
Standard Package 250
Win Source Part Number 1079094-MLEAWT-A1-R250-0004E5
Ultra Librarian 3D Model Ultra Librarian MLEAWT-A1-R250-0004E5 CAD Model

Description

The CreeLED, Inc. MLEAWT-A1-R250-0004E5 is a white, neutral LED lighting device with a viewing angle of 120 degrees.

  • Voltage Forward: 3.2V
  • Current Max: 175mA
  • CCT: 4000K
  • Flux: 59lm @ 25 degrees Celsius
  • Lumens/Watt: 123lm/W @ current test
  • Thermal Resistance: 11 degrees Celsius per watt
  • Package: 4-SMD, J-Lead Exposed Pad
  • Category: Optoelectronics
  • REACH: unaffected
  • EAR99: compliant
