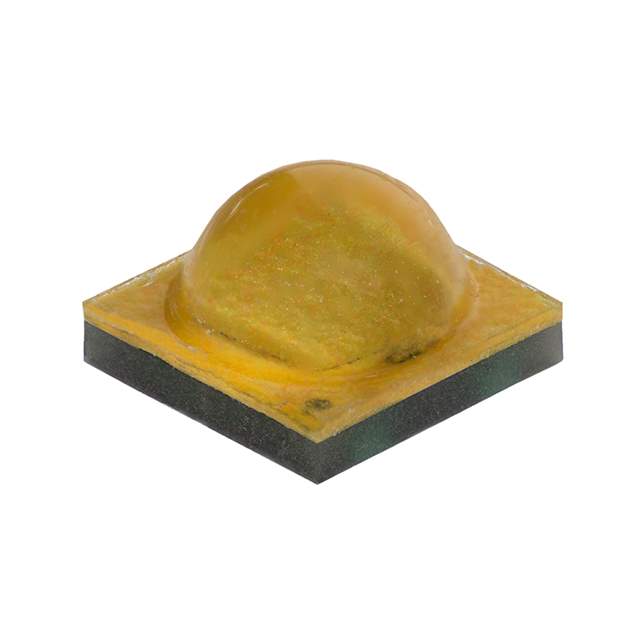

XPGDWT-01-0000-00LE5 Real Image
Same model may have multiple batches, images only for reference.

XPGDWT-01-0000-00LE5

Part No XPGDWT-01-0000-00LE5
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP XPG3 NEUTRAL WHITE SMD / LED Lighting Xlamp® XP-G3 White, Neutral 4000K 2.73V 350mA 125° 1414 (3535 Metric)
Datasheet
XPGDWT-01-0000-00LE5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Manufacturer CreeLED, Inc.
Packaging Reel - TR
Color White, Neutral
CCT (K) 4000K
Flux @ 85°C, Current - Test 168lm (164lm ~ 172lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.73V
Lumens/Watt @ Current - Test 176 lm/W
CRI (Color Rendering Index) 70 (Typ)
Current - Max 2A
Viewing Angle 125°
Mounting Surface Mount
Case / Package 1414 (3535 Metric)
Size / Dimension 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) 0.094" (2.39mm)
Thermal Resistance of Package 3°C/W
Base Product Number XPGDWT
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number XPGDWT-01-0000-00LE5TR,XPGDWT-01-0000-00LE5DKR,XPGDWT-01-0000-00LE5CT
Standard Package 1,000
Win Source Part Number 1331938-XPGDWT-01-0000-00LE5
Ultra Librarian 3D Model Ultra Librarian XPGDWT-01-0000-00LE5 CAD Model

Description

The CreeLED XPGDWT-01-0000-00LE5 is a surface mount LED lighting component that provides a neutral white light.

  • Size: 0.136" L x 0.136" W (3.45mm x 3.45mm)
  • Viewing Angle: 125°
  • Height: 0.094" (2.39mm)
  • Thermal Resistance of Package: 3°C/W
  • Current Max: 2A
  • CCT: 4000K
  • CRI: 70 (Typ)
  • Flux: 168lm (164lm ~ 172lm) @ 85°C, Current - Test
  • Lumens/Watt: 176 lm/W @ Current - Test
