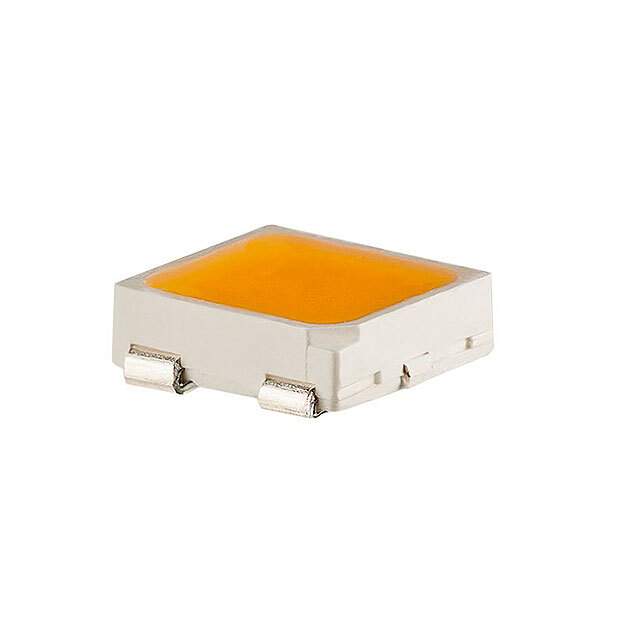

MLEAWT-A1-0000-0004DY Real Image
Same model may have multiple batches, images only for reference.

MLEAWT-A1-0000-0004DY

Part No MLEAWT-A1-0000-0004DY
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP COOL WHITE 5425K 4SMD / LED Lighting XLamp® ML-E White, Cool 5425K (4750K ~ 6100K) 3.2V 150mA 120° 4-SMD, J-Lead Exposed Pad
Datasheet
MLEAWT-A1-0000-0004DY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Manufacturer CreeLED, Inc.
Packaging Reel - TR
Color White, Cool
CCT (K) 5425K (4750K ~ 6100K)
Flux @ 85°C, Current - Test 46lm
Flux @ 25°C, Current - Test 54lm (52lm ~ 57lm)
Current - Test 150mA
Voltage - Forward (Vf) (Typ) 3.2V
Lumens/Watt @ Current - Test 113 lm/W
CRI (Color Rendering Index) 80
Current - Max 500mA
Viewing Angle 120°
Mounting Surface Mount
Case / Package 4-SMD, J-Lead Exposed Pad
Supplier Device Package SMD
Size / Dimension 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) 0.052" (1.33mm)
Thermal Resistance of Package 11°C/W
Base Product Number MLEAWT
RoHS Status RoHS Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 1,400
Win Source Part Number 1331831-MLEAWT-A1-0000-0004DY
Ultra Librarian 3D Model Ultra Librarian MLEAWT-A1-0000-0004DY CAD Model

Description

The MLEAWT-A1-0000-0004DY is an LED Lighting - White optoelectronic product.

  • Manufacturer: CreeLED, Inc.
  • Packaging: Reel - TR
  • Color: Cool White
  • Size: 0.138" L x 0.124" W (3.50mm x 3.15mm)
  • Maximum Height: 0.052" (1.33mm)
  • Package: 1,400
  • Mounting Type: Surface Mount
  • Maximum Current: 500mA
  • Viewing Angle: 120°
  • Voltage Forward (Vf): 3.2V
  • CCT: 5425K (4750K ~ 6100K)
  • Flux: 54lm (52lm ~ 57lm) @ 25°C, Current - Test
  • Lumens/Watt: 113 lm/W
  • CRI: 80
  • Operating Temperature Range: -40°C to 85°C
  • RoHS Compliant: Yes
