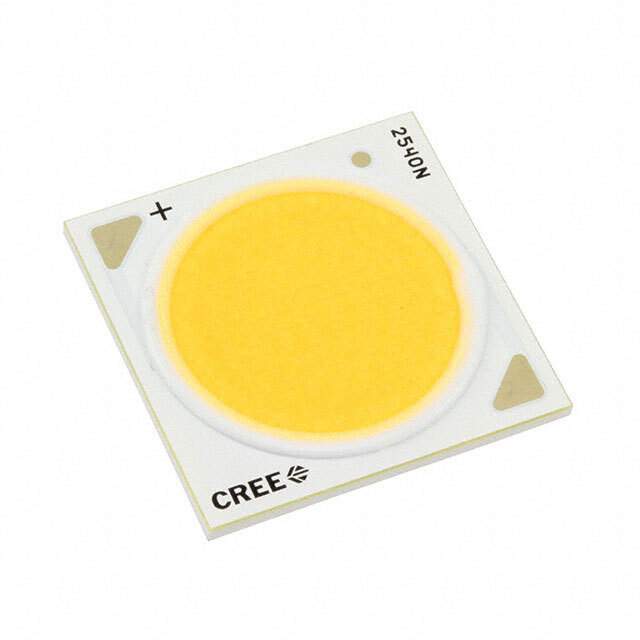

CXB2540-0000-000N0HW230H Real Image
Same model may have multiple batches, images only for reference.

CXB2540-0000-000N0HW230H

Part No CXB2540-0000-000N0HW230H
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXB2540 3000K WHT SMD / Chip On Board LED Lighting Module
Datasheet
CXB2540-0000-000N0HW230H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series Xlamp CXB2540
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 2-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 5043 lm (4860 lm ~ 5225 lm)
Current - Test 1.1A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 127 lm/W
Current - Max 2.1A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 799263-CXB2540-0000-000N0HW230H
Popularity Medium
Supply and Demand Status Balance
Family Name CXB2540-0000-000N0HW230H
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CXB2540-0000-000N0HW230H CAD Model

Description

The Cree Inc. CXB2540-0000-000N0HW230H is a chip on board (COB) LED with a square configuration and a viewing angle of 115 degrees.

  • Colors: White and Warm
  • Maximum Current: 2.1A
  • Forward Voltage: 36V
  • Lens Type: Flat
  • Light Emitting Surface (LES): 19.00mm diameter
  • CRI: 80
  • CCT: 3000K
  • MacAdam Ellipse: 2-step
  • Luminous Efficacy (@ 1.1A test current): 127 lm/W
  • Flux (@ 85°C): 5043 lm
  • Height: 1.70mm
  • Dimension: 23.85mm L x 23.85mm W
  • Series: Xlamp CXB2540
  • Supply and Demand Status: Balanced
  • Estimated EOL Date: 2028
