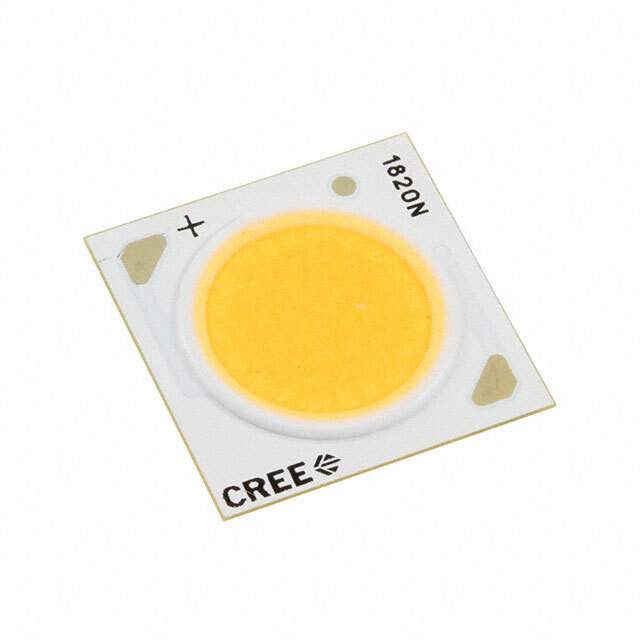

CXB1820-0000-000N0UR240G Real Image
Same model may have multiple batches, images only for reference.

CXB1820-0000-000N0UR240G

Part No CXB1820-0000-000N0UR240G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description XLamp LED
Datasheet
CXB1820-0000-000N0UR240G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series Xlamp CXB1820
Packaging Tray
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2510 lm (2420 lm ~ 2600 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 127 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 90
Viewing Angle 115°
Size 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 1163823-CXB1820-0000-000N0UR240G
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXB1820-0000-000N0UR240G
Introduction Date February 06, 2015
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CXB1820-0000-000N0UR240G CAD Model

Description

The CXB1820-0000-000N0UR240G is an electronic component manufactured by Cree Inc.

  • Product Type: Chip on Board (COB)
  • Configuration: Square
  • Viewing Angle: 115°
  • Color: White, Neutral
  • CCT (K): 4000K 3-Step MacAdam Ellipse
  • Voltage Forward (Vf) (Typ): 36V
  • Current Max: 1.05A
  • Current Test: 550mA
  • Lumens/Watt @ Current - Test: 127 lm/W
  • Flux @ Current/Temperature - Test: 2510 lm (2420 lm ~ 2600 lm)
  • CRI (Color Rendering Index): 90
  • Light Emitting Surface (LES): 12.00mm diameter
  • Height: 1.70mm
  • Supply and Demand: Limited
