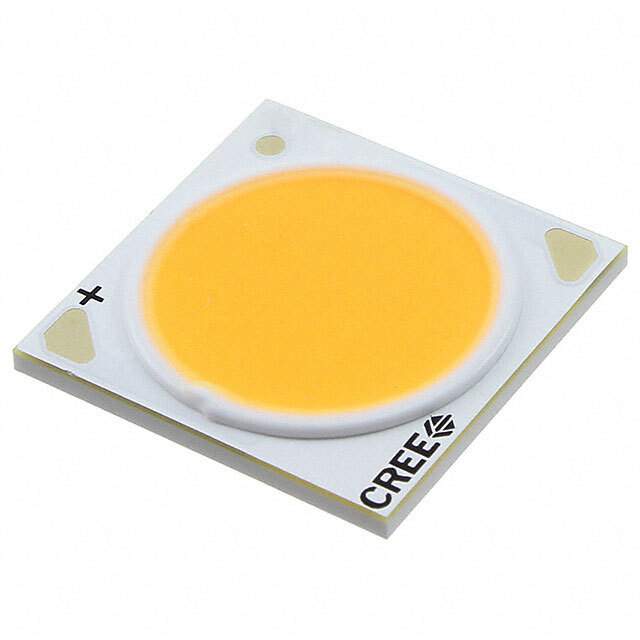

CXA1830-0000-000N0YQ427G Real Image
Same model may have multiple batches, images only for reference.

CXA1830-0000-000N0YQ427G

Part No CXA1830-0000-000N0YQ427G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1820 2700K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA1830-0000-000N0YQ427G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1830
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2340 lm (2260 lm ~ 2420 lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 81 lm/W
Current - Max 1.4A
CRI (Color Rendering Index) 93
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 14.00mm Diameter
Lens Type Flat
Win Source Part Number 771977-CXA1830-0000-000N0YQ427G
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1830-0000-000N0YQ427G
Introduction Date November 03, 2017
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CXA1830-0000-000N0YQ427G CAD Model

Description

The CXA1830-0000-000N0YQ427G is a chip on board (COB) product from Cree Inc.

  • Packaging: Tray
  • Configuration: Square
  • Viewing Angle: 115°
  • Voltage-Forward (Vf): 36V
  • Maximum Current: 1.4A
  • Height: 1.70mm
  • Dimension: 17.85mm L x 17.85mm W
  • CCT: 2700K 3-step MacAdam ellipse
  • CRI: 93
  • Lumens/watt: 81 lm/W @ current - test
  • Flux @ Current/Temperature - Test: 2340 lm (2260 lm ~ 2420 lm) @ current/temperature - test
  • LES Diameter: 14.00mm
  • Category: Optoelectronics
  • Popularity: Medium
  • Supply and Demand Status: Limited
