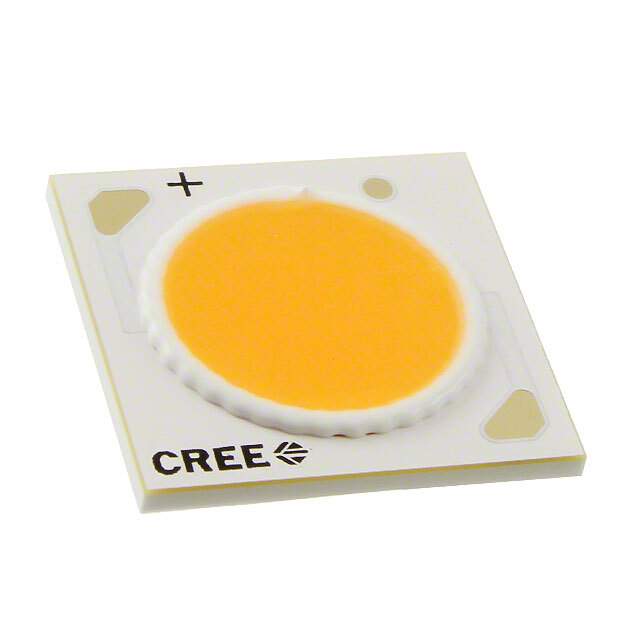

CXA1820-0000-000N00R235G Real Image
Same model may have multiple batches, images only for reference.

CXA1820-0000-000N00R235G

Part No CXA1820-0000-000N00R235G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1820 3500K WHITE SMD / LED Modules Uni-Color White 2-Pin Tray
Datasheet
CXA1820-0000-000N00R235G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1820
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2510 lm (2420 lm ~ 2600 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 127 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 771970-CXA1820-0000-000N00R235G
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1820-0000-000N00R235G
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA1820-0000-000N00R235G CAD Model

Description

The Cree CXA1820-0000-000N00R235G is a square-shaped chip-on-board (COB) LED that offers high efficiency and a color temperature of 3500K in a compact package.

  • Maximum Current: 1.05A
  • Forward Voltage: 36V
  • Viewing Angle: 115 degrees
  • CRI: 80
  • Luminous Efficacy: 127 lm/W @ 550mA
  • Packaging: Tray
  • LES Diameter: 12.00mm
