Same model may have multiple batches, images only for reference.

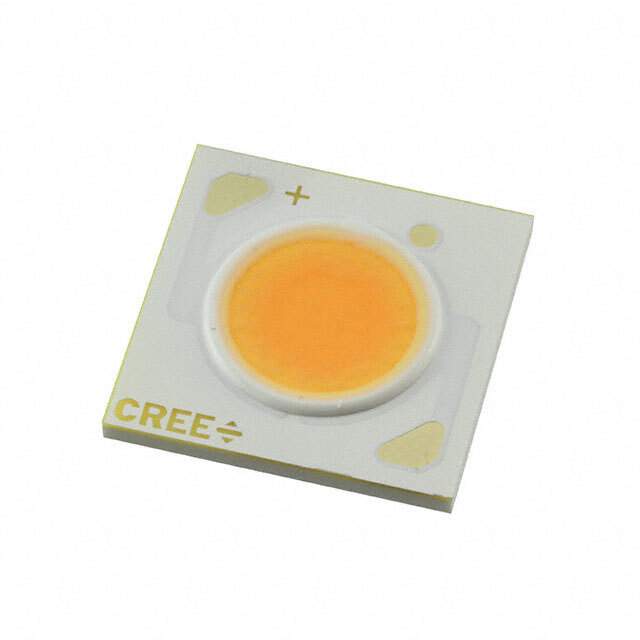

CXA1816-0000-000N0YM230G Real Image
Same model may have multiple batches, images only for reference.

CXA1816-0000-000N0YM230G

Part No CXA1816-0000-000N0YM230G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description XLamp LED
Datasheet
CXA1816-0000-000N0YM230G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1816
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1433 lm (1380 lm ~ 1485 lm)
Current - Test 450mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 88 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 93
Viewing Angle 115°
Size 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 1163786-CXA1816-0000-000N0YM230G
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1816-0000-000N0YM230G
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CXA1816-0000-000N0YM230G CAD Model

Description

The Cree Inc. CXA1816-0000-000N0YM230G is a chip on board (COB) optoelectronic component from Cree Inc.

  • Color: White and warm
  • Configuration: Square
  • Viewing Angle: 115°
  • Height: 1.70mm
  • Size: 17.85mm L x 17.85mm W
  • Lens Type: Flat
  • Light Emitting Surface (LES): 12.00mm diameter
  • CCT (K): 3000K 3-Step MacAdam Ellipse
  • CRI (Color Rendering Index): 93
  • Lumens/Watt @ Current - Test: 88 lm/W
  • Flux @ Current/Temperature - Test: 1433 lm (1380 lm ~ 1485 lm)
  • Temperature - Test: 85°C
  • Packaging: Tray
  • Series: XLamp CXA1816
  • ECCN: EAR99
  • Estimated EOL Date: 2024
