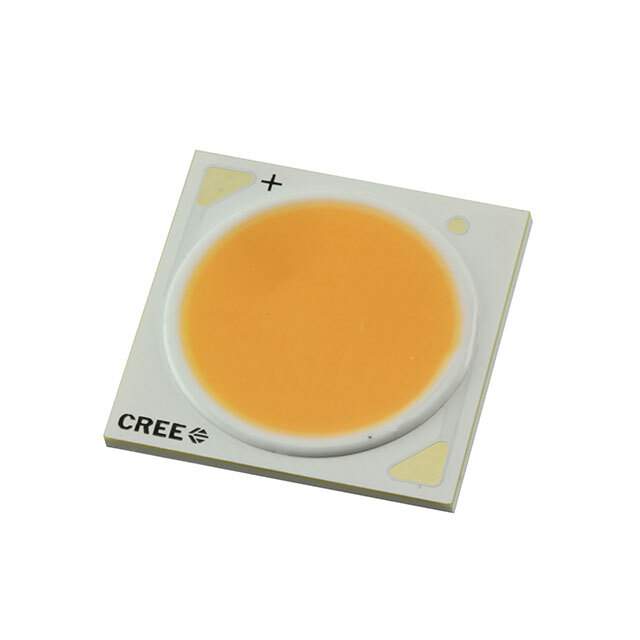

CXA1507-0000-000N0HG450G Real Image
Same model may have multiple batches, images only for reference.

CXA1507-0000-000N0HG450G

Part No CXA1507-0000-000N0HG450G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1507 5000K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA1507-0000-000N0HG450G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1507
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 870 lm (840 lm ~ 900 lm)
Current - Test 200mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 121 lm/W
Current - Max 375mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Diameter
Lens Type Flat
Win Source Part Number 771960-CXA1507-0000-000N0HG450G
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1507-0000-000N0HG450G
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CXA1507-0000-000N0HG450G CAD Model

Description

The Cree Inc. XLamp CXA1507 is a chip-on-board (COB) type LED with a square configuration and a cool white color.

  • Maximum Current: 375mA
  • Forward Voltage: 36V (typical)
  • Viewing Angle: 115°
  • Height: 1.70mm
  • Packaging: Tray
  • Lens Type: Flat
  • CCT: 5000K
  • MacAdam Ellipse: 3-step
  • CRI: 80
  • Flux: 870 lm (840 lm ~ 900 lm) @ 200mA/85°C
  • Luminous Efficacy: 121 lm/W
  • LES Diameter: 8.90mm
  • Dimension: 15.85mm L x 15.85mm W
  • Category: Optoelectronic
  • Popularity: Medium
  • Supply and Demand Status: Limited
