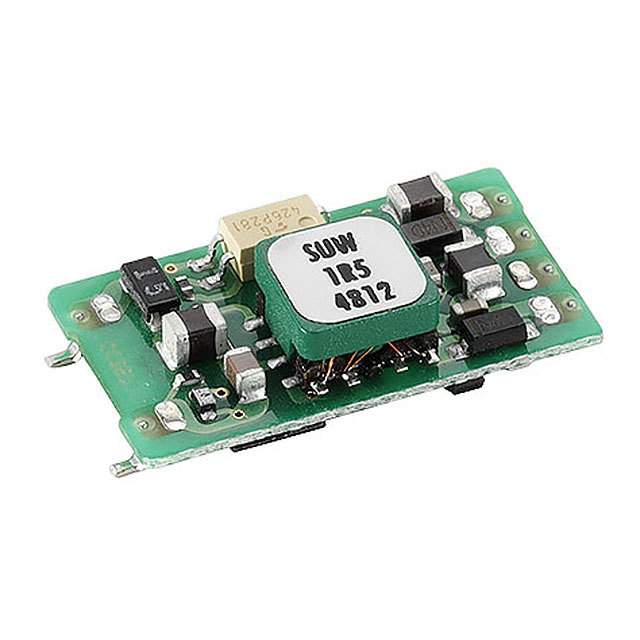

Same model may have multiple batches, images only for reference.
SUW1R50512B Others
Same model may have multiple batches, images only for reference.

SUW1R50512B

Part No SUW1R50512B
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 24V 1.6W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUW (1.5W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 24V
Current - Output (Max) 65mA, 65mA
Power (Watts) 1.6 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 72%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm)
Base Product Number SUW1R50512
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 349372-SUW1R50512B
Ultra Librarian 3D Model Ultra Librarian SUW1R50512B CAD Model

Description

The SUW1R50512B is a 1.6W isolated module DC-DC converter designed for power supply applications.

  • Package: box package with dimensions of 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm)
  • Series: SUW (1.5W) series
  • Features: no specific features mentioned
  • Application: commercial applications
  • Standard Package: 1 piece
  • Power: 1.6W
  • Voltage Isolation: 500V
  • Outputs: two outputs with maximum output currents of 65mA each, providing 12V and -12V
  • Additional Output: 24V output
  • Input Voltage Range: 4.5V to 9V
  • Efficiency: 72%
  • Operating Temperature: -40°C to 85°C with derating
  • Status: active product supplied by Cosel USA, Inc.
  • Compliance: California Prop 65 regulations
