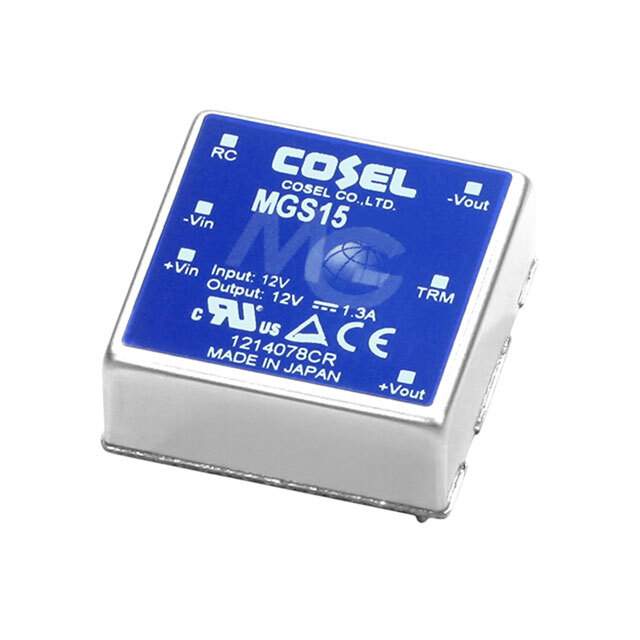

Same model may have multiple batches, images only for reference.

MGS151212

Name: MGS151212
Brand: Cosel USA, Inc.
SKU: 1031753
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MGS151212
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V / Isolated Module DC DC Converter 1 Output 12V 1.3A 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	MGS (15W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Current - Output (Max)	1.3A
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	87%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1366
Standard Package	1
Win Source Part Number	1031753-MGS151212
Ultra Librarian 3D Model	Ultra Librarian MGS151212 CAD Model

Alternative Products

Description

The Cosel USA MGS series is an isolated module type power supply with remote on/off and OCP features.

Series: MGS
Type: Isolated Module
Features: Remote On/Off, OCP
Package: Box, 6-DIP Module
Application: ITE (Commercial)
Voltage Isolation: 1.5 kV
Number of Outputs: 1
Output Voltage: 12V
Maximum Current Output: 1.3A
Input Voltage Range: 9V to 18V
Efficiency: 87%
Operating Temperature: -40°C to 85°C (with derating)
Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Manufacturer: Cosel USA
