Same model may have multiple batches, images only for reference.

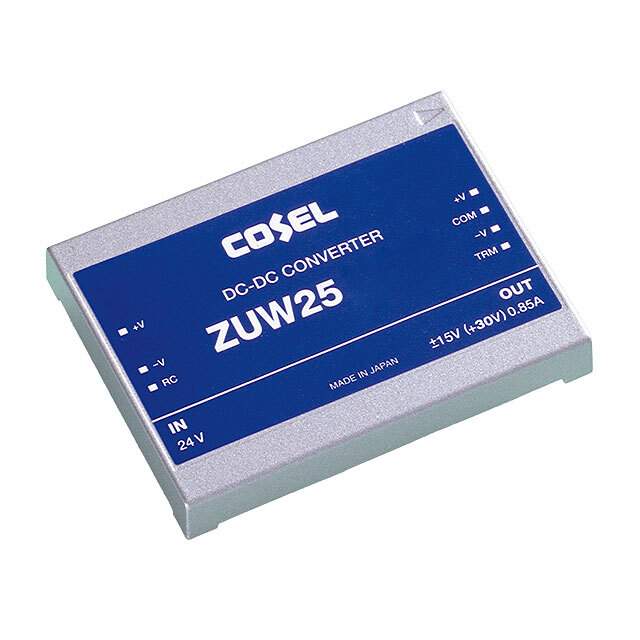

ZUW254812 Real Image
Same model may have multiple batches, images only for reference.

ZUW254812

Part No ZUW254812
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 1.05A, 1.05A 36V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series ZUW (25W)
Package Box
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1.05A, 1.05A
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -20°C ~ 71°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 2.56" L x 1.97" W x 0.33" H (65.0mm x 50.0mm x 8.5mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1348542-ZUW254812
Ultra Librarian 3D Model Ultra Librarian ZUW254812 CAD Model

Description

The Cosel ZUW254812 is an isolated module DC/DC converter that is perfect for ITE (Commercial) applications.

  • Voltage Input: 36V to 75V
  • Output Voltage: 12V and -12V
  • Current Output: 1.05A each
  • Efficiency: 85%
  • Features: Remote On/Off, Overcurrent Protection, and Overvoltage Protection
  • Mounting Type: Through Hole
  • Operating Temperature: -20°C to 71°C
  • Series: ZUW (25W)
  • Status: Obsolete
