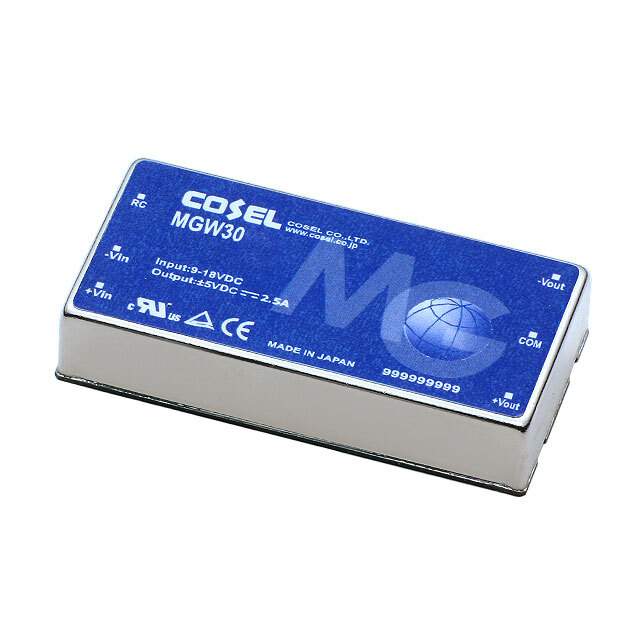

MGW301212 Real Image
Same model may have multiple batches, images only for reference.

MGW301212

Part No MGW301212
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V or 24V -12V 1.25A, 1.25A 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGW (30W)
Package Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V or 24V
Voltage - Output 2 -12V
Current - Output (Max) 1.25A, 1.25A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Bridgeable, Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1338905-MGW301212
Ultra Librarian 3D Model Ultra Librarian MGW301212 CAD Model

Description

The MGW301212 is a 30W isolated module DC-DC converter from Cosel USA, Inc.

  • Type: Power Supplies Board Mount DC-DC Converters
  • Features: Bridgeable, Remote On/Off, OCP, and OVP
  • Package: Box
  • Size: 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Output Current: 1.25A, 1.25A
  • Input Voltage: 9V to 18V
  • Efficiency: 90%
  • Mounting Type: Through Hole
  • Voltage Output Options: 12V or 24V and -12V
  • MSL Level: Not Applicable
  • HTSUS: 8504.40.9580
