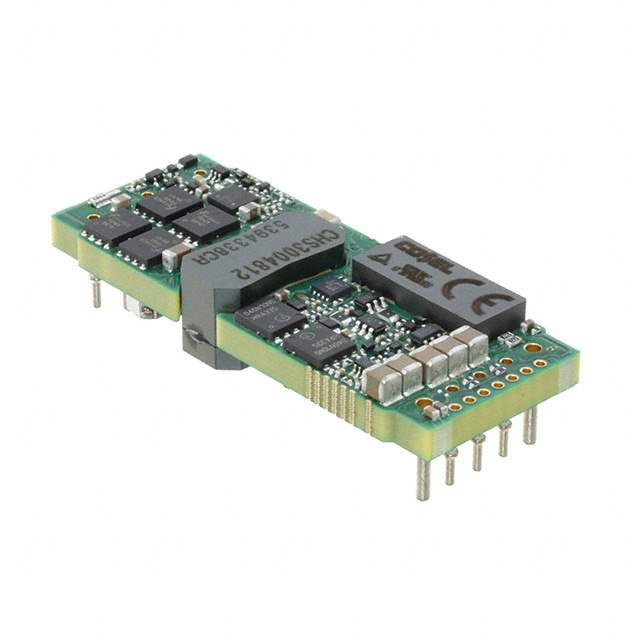

CHS3004812 Real Image
Same model may have multiple batches, images only for reference.

CHS3004812

Part No CHS3004812
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 300W / Isolated Module DC DC Converter 1 Output 12V 25A 36V - 76V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CHS (300W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Current - Output (Max) 25A
Power (Watts) 300 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 94.5%
Mounting Type Through Hole
Package / Case 8-DIP Module
Size / Dimension 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm)
Approval Agency CE, cURus, TUV
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1350043-CHS3004812
Ultra Librarian 3D Model Ultra Librarian CHS3004812 CAD Model

Description

The Cosel USA CHS3004812 is a 300W isolated module DC-DC converter that comes in a box package.

  • Power: 300W
  • Application: ITE (Commercial)
  • Efficiency: 94.5%
  • Voltage Isolation: 2.25 kV
  • Output Count: Single
  • Output Current (Max): 25A
  • Output Voltage: 12V
  • Features: Adjustable Output
  • Operating Temperature: -40°C to 85°C (with derating)
  • Mounting Type: Through Hole
  • Package/Case: 8-DIP module
  • Approvals: CE, cURus, TUV
