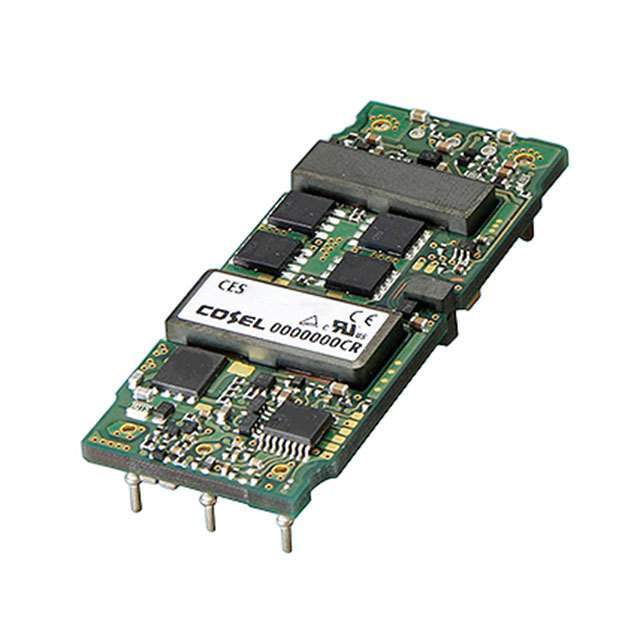

CES48120-6-N Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

CES48120-6-N

Part No CES48120-6-N
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 72W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CES (100W)
Package Box
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Current - Output (Max) 6A
Power (Watts) 72 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module
Size / Dimension 2.28" L x 0.90" W x 0.33" H (57.9mm x 22.8mm x 8.5mm)
Base Product Number CES48120
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 771486-CES48120-6-N
Ultra Librarian 3D Model Ultra Librarian CES48120-6-N CAD Model

Description

The CES48120-6-N is a 100W DC-DC converter module from Cosel USA's CES series.

  • Applications: board mount
  • Output Voltage: 12V
  • Maximum Output Current: 6A
  • Voltage Isolation: 1.5 kV
  • Power Rating: 72W
  • Input Voltage: 36V to 76V
  • Package: 8-DIP module (2.28" L x 0.90" W x 0.33" H)
  • Efficiency: 91%
  • Operating Temperature: -40°C to 85°C
  • Status: obsolete
  • Compliance: California Prop 65
