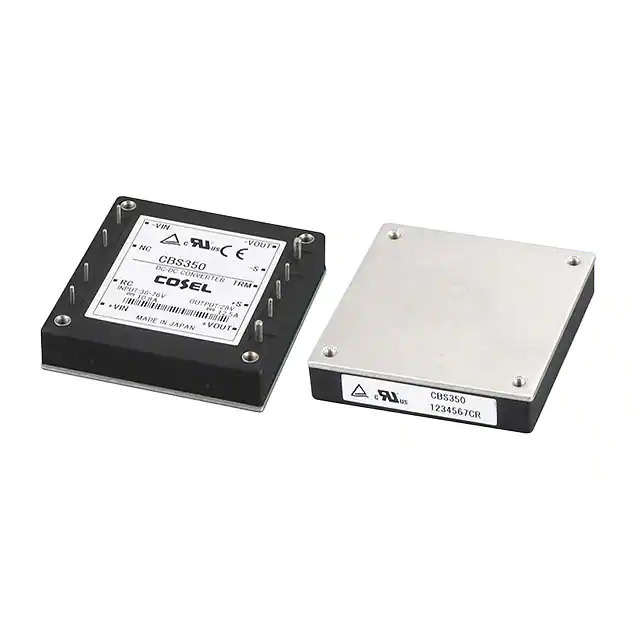

CBS3502424 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

CBS3502424

Part No CBS3502424
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 348W / Isolated Module DC DC Converter 1 Output 24V 14.5A 20V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CBS (350W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 20V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 14.5A
Power (Watts) 348 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 87%
Mounting Type Through Hole
Package / Case Half Brick
Size / Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package Half Brick
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355421-CBS3502424
Ultra Librarian 3D Model Ultra Librarian CBS3502424 CAD Model

Description

The Cosel USA, Inc. CBS3502424 is a 350W isolated module DC-DC converter.

  • Operating Temperature: -40°C ~ 100°C (With Derating)
  • Package / Case: Half Brick
  • Voltage - Input (Min): 20V
  • Voltage - Input (Max): 36V
  • Current - Output (Max): 14.5A
  • Voltage - Output: 24V
  • Efficiency: 87%
  • Applications: ITE (Commercial)
  • Voltage - Isolation: 1.5 kV
  • Series: CBS
  • Features: Remote On/Off, Over Current Protection, Over Voltage Protection
  • Size / Dimension: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
  • Mounting Type: Through Hole
  • Approvals: CE, cURus, DEMKO
