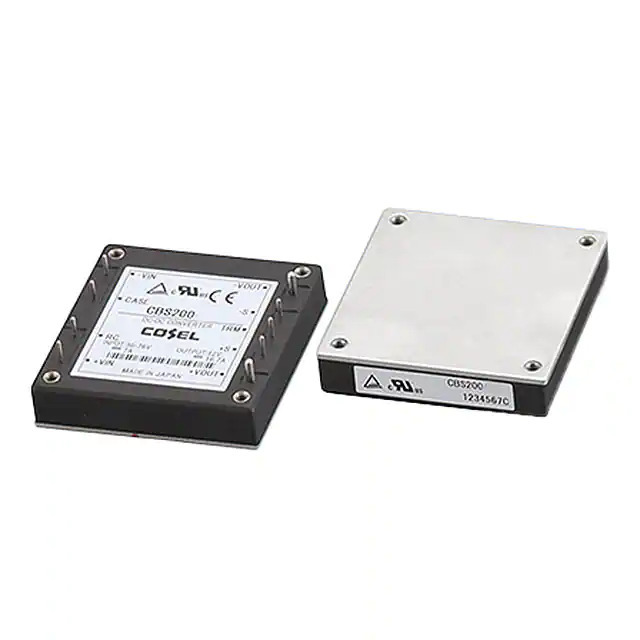

CBS2002405 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

CBS2002405

Part No CBS2002405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 30A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CBS (200W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 30A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355422-CBS2002405
Ultra Librarian 3D Model Ultra Librarian CBS2002405 CAD Model

Description

The CBS2002405 is a 200W isolated module DC/DC converter from Cosel USA, Inc.

  • Series: CBS
  • Package: 9-DIP Module
  • Voltage - Input: 18V ~ 36V
  • Voltage - Output 1: 5V
  • Output Current - Max: 30A
  • Efficiency: 82%
  • Applications: ITE (Commercial)
  • Voltage - Isolation: 1.5 kV
  • Operating Temperature: -40°C ~ 100°C
  • Mounting Type: Through Hole
  • Size / Dimension: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
  • Lifecycle Status: Active
  • Features: Remote On/Off, OCP, OTP, OVP
